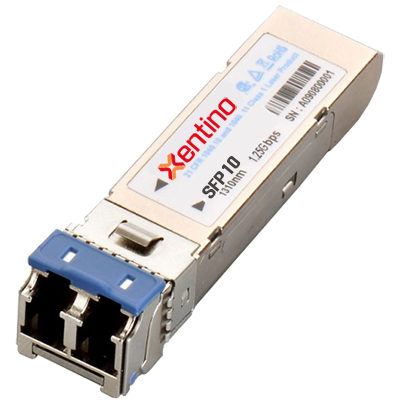

Xentino SFP10 1000Base-LX Single Mode Transceiver - 10Km (-40 to 85C)
The transceiver is small form factor pluggable module with standard duplex connector for fiber communications. This module is designed for single-mode-fiber (SMF) and operates at a nominal wavelength of 1310 nm with cost effective and high performance. It is with the SFP 20-pin connector to allow hot plug capability.
The transceiver is small form factor pluggable module with standard duplex connector for fiber communications. This module is designed for single-mode-fiber (SMF) and operates at a nominal wavelength of 1310 nm with cost effective and high performance. It is with the SFP 20-pin connector to allow hot plug capability.
- Single + 3.3V power supply
- Differential Inputs and Outputs
- Small Form Factor Pluggable MSA Compliant.
- Commercial Operation Temp.: 0 oC to +70 oC
- Industrial Operation Temp.: -40 oC to +85 oC
- RoHS Compliant
- Class 1 Laser International Safety Standard IEC 825 Compliant. Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
- Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration.
| Absolute Maximum Ratings | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | ||
| Supply Voltage | VCC | 0 | - | 4 | V | ||
| Storage Temperature | TS | -40 | - | 85 | oC | ||
| Operating Temperature | Commercial | TOP-com | 0 | - | 70 | oC | |
| Industrial | TOP-ind | -40 | - | 85 | oC | ||
| Lead Soldering Limits | TSOLD | - | - | 260/10 | oC /sec | ||
| General Specifications | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | ||
| Data Rate | B | 0.80 | 1.25 | 1.50 | Gbps | ||
| Supported Link Length on 9/125m SMF | for 1312-10 | L | 10 | - | - | Km | |
| for 1312-15 | 15 | - | - | Km | |||
| for 1312-20 | 20 | - | - | Km | |||
| Supply Current | ITx+IRx | - | - | 300 | mA | ||
| Power Dissipation | PDis | - | - | 1000 | mW | ||
| Transmitter Electrical Characteristics | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | ||
| Supply Voltage | VCC | 3.15 | 3.3 | 3.45 | V | ||
| Data Differential Input Voltage | Vin, pp | 400 | - | 2000 | mV | ||
| Disable Input Voltage | VIL - VCC | -1.81 | - | -1.48 | V | ||
| Enable Input Voltage | VIH - VCC | -1.16 | - | -0.88 | V | ||
| TX Fault Voltage-High (Fault) | VTF | 2.0 | - | VCC | V | ||
| TX Fault Voltage-Low (Normal) | VTN | 0 | - | 0.8 | V | ||
| POut@TX Disable Asserted | POFF | - | - | -45 | dBm | ||
| Transmitter Optical Characteristics | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | ||
| Output Optical Power on 9m SMF | PO | -9 | - | -3 | dBm | ||
| Center Wavelength | C | 1280 | 1310 | 1340 | nm | ||
| Spectral Width (RMS) | RMS | - | - | 2 | nm | ||
| Optical Rise Time (20%-80%) | tr | - | - | 0.26 | ns | ||
| Optical Fall Time (20%-80%) | tf | - | - | 0.26 | ns | ||
| Extinction Ratio | ER | 9 | - | - | dB | ||
| Receiver Electrical Characteristics | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | ||
| Supply Voltage | VCC | 3.15 | 3.3 | 3.45 | V | ||
| Data Differential Output Voltage | Vout, pp | 500 | - | 1200 | mV | ||
| Receiver LOS/SD Output Voltage-High | VRH | 2.0 | - | VCC | V | ||
| Receiver LOS/SD Output Voltage-Low | VRL | 0 | - | 0.8 | V | ||
| Data Output Rise Time (20%-80%) | tr | - | - | 0.35 | ns | ||
| Data Output Fall Time (20%-80%) | tf | - | - | 0.35 | ns | ||
| Receiver Optical Characteristics | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | ||
| Maximum Receiver Power | Pin | -3 | - | - | dBm | ||
| Receiver Sensitivity | for 1312-10 | PS | - | - | -21 | dBm | |
| for 1312-15/20 | - | - | -23 | dBm | |||
| Operating Wavelength | C | 1100 | - | 1600 | nm | ||
| Optical Return Loss | PR | - | - | 12 | dB | ||
| Signal Detect-Asserted | for 1312-10 | PA | - | - | -21 | dBm avg. | |
| for 1312-15/20 | - | - | -23 | dBm avg. | |||
| Signal Detect-Deasserted | PD | -36 | - | - | dBm avg. | ||
| Signal Detect-Hysteresis | PA-PD | 0.5 | - | - | dB | ||
