Xentino XAIR A400N Outdoor Wireless AP Router 150 Mbps

Xentino XAIR A400N Outdoor Wireless AP Router 150 Mbps

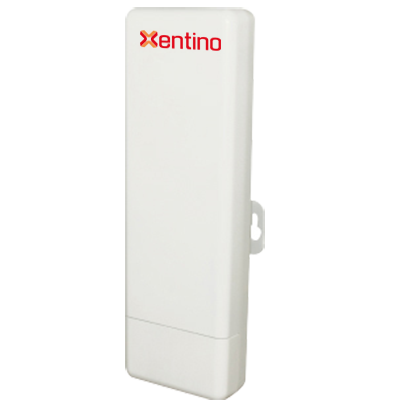

The Xentino XAIR Series A400N Outdoor Wireless Router is an affordable IEEE 802.11b/g/n specifications of Outdoor Router solution; setting SOHO and enterprise standard for high performance, secure, manageable and reliable WLAN.

The Xentino XAIR Series A400N Outdoor Wireless Router is an affordable IEEE 802.11b/g/n specifications of Outdoor Router solution; setting SOHO and enterprise standard for high performance, secure, manageable and reliable WLAN.

  • Support advanced 1 x 1 Technology with up to 150Mbps downstream and upstream
  • Complies with 2.4GHz IEEE802.11n and IEEE802.11b/g standards
  • Low Noise Amplifier(LNA) support
  • Support 20MHz and 40 MHz bandwidth
  • Operation mode: Bridge, Gateway, WISP
  • Wireless mode: AP,AP Client, WDS, AP WDS
  • Support DHCP Server
  • Virtual DMZ, Port Forwarding
  • Firewall, IP/Port/MAC filtering
  • Wireless users access control
  • Wireless security - WEP, WPA, WPA2
  • Support DHCP client, static IP, PPPoE, PPTP and L2TP for WAN connection
  • Software WPS function
  • Support Power over Ethernet (PoE passive)
  • Support External Antenna selection(Default setting is internal antenna)
Technical Spesifications A400N
Standard  IEEE 802.11 b/g/n
Chipset  Ralink RTL3050
Frequency Band 2.412GHz ~ 2.484GHz
Security 64/128 bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA Mixed
Data Rate 802.11b：11,5.5,2 and 1 Mbps with auto-rate fall back
802.11g：54,48,36,24,18,12,9&6Mbps
802.11n：(20MHz)：up to 72Mbps
802.11n：(40MHz)：up to 150Mbps
Sensitivity  -93dBm @ 802.11b
  -91dBm @ 802.11g
  -89dBm @ 802.11n
Output Power(Typical)   802.11b: up to 25 ± 1 dBm
  802.11g: up to 22 ± 1 dBm
  802.11n: up to 21 ± 1 dBm
Media Access Control   CSMA/CA
Antenna   12dBi vertical polarization Antenna
Operation Mode   Bridge, Gateway, WISP
Wireless Mode   AP, Client, WDS+AP, WDS
Connector   One RJ-45 WAN PORT
  One RJ-45 LAN port
  SMA connector
  Reset to default button
Operation Temperature   0°C ~ 70°C ambient temperature
Storage Humidity   10% ~90%(Non-condensing)
Power requirement   12V DC/1A
