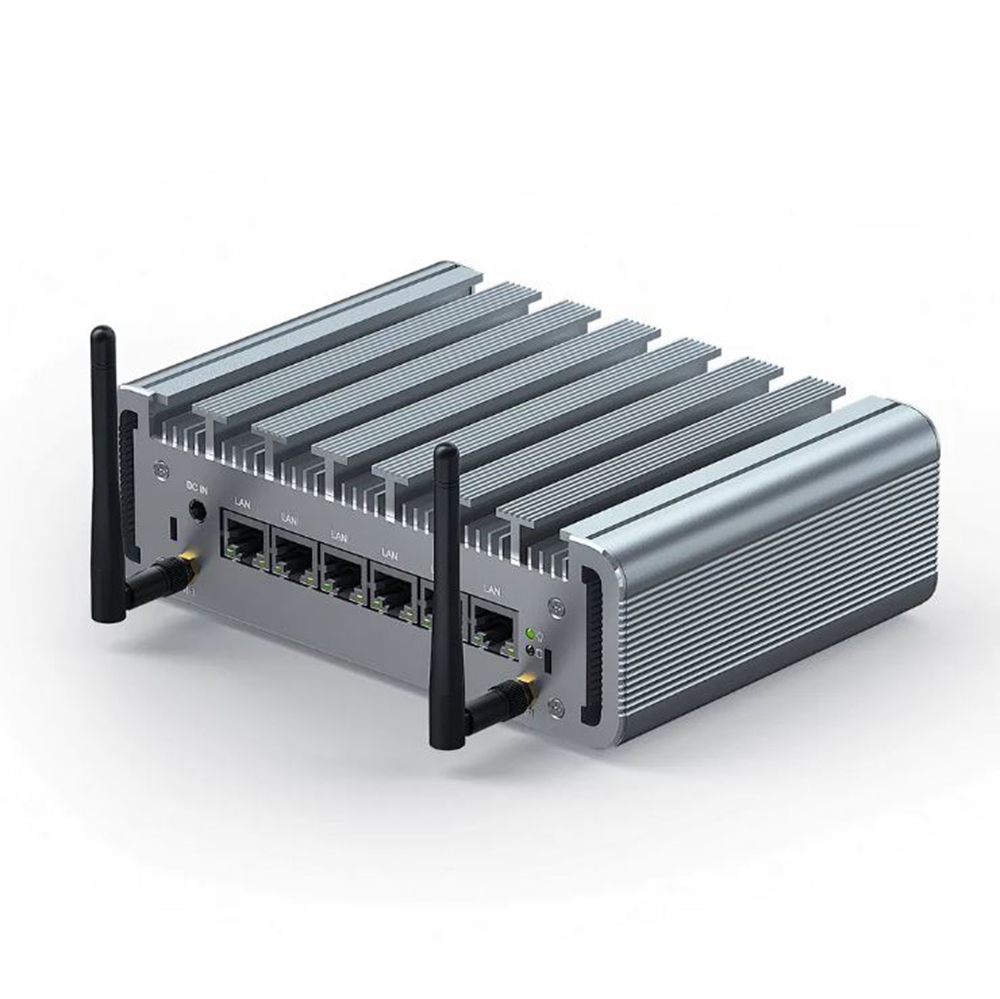

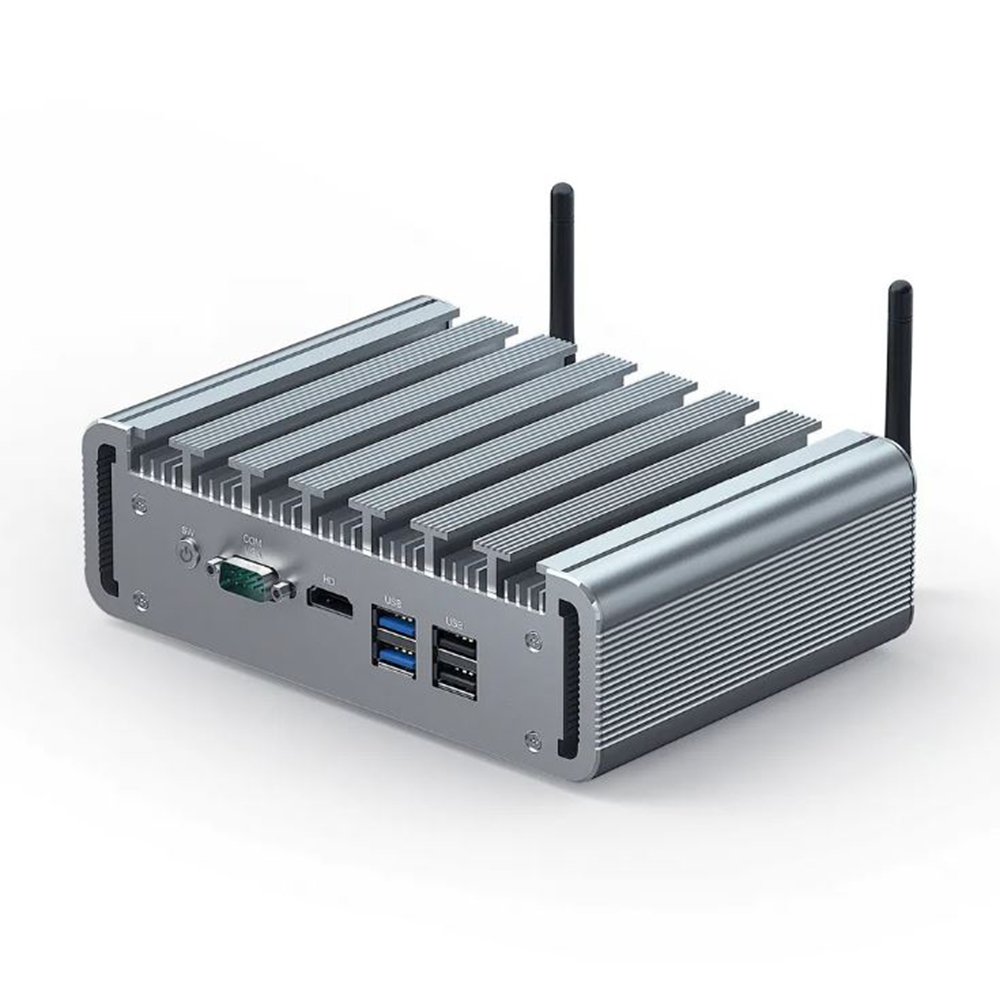

The Xentino TR111 Mini PC Device is designed for unique office and home networking applications such as a firewall, router or educational presentation device. It is equipped with Intel Celeron J4125, 16GB DDR4, Intel UHD Graphics 600, 256GB SSD, 2xUSB 3.0, 2xUSB 2.0, 1xHDMI, 1xRS232 and 6x2.5GBit Ethernet with Intel i225V.
The Xentino TR111 Mini PC Device is designed for unique office and home networking applications such as a firewall, router or educational presentation device. It is equipped with Intel Celeron J4125, 16GB DDR4, Intel UHD Graphics 600, 256GB SSD, 2xUSB 3.0, 2xUSB 2.0, 1xHDMI, 1xRS232 and 6x2.5GBit Ethernet with Intel i225V.
The Xentino TR111 Mini PC Device is designed for unique office and home networking applications such as a firewall, router or educational presentation device. It is equipped with Intel Celeron J4125, 16GB DDR4, Intel UHD Graphics 600, 256GB SSD, 2xUSB 3.0, 2xUSB 2.0, 1xHDMI, 1xRS232 and 6x2.5GBit Ethernet with Intel i225V.
Product Overview
SPECIFICATIONS
CPU |
Intel Celeron J4125 (4M Cache, 4 Cores 4 Threads, Base Frequency 2.00 GHz Turbo Frequency 2.70 GHz) |
TDP |
10W |
CPU Lithography |
14 nm |
Memory Specifications |
|
Max Memory Size |
24GB(16G+8G) |
Memory Types |
2*DDR4 SO-DIMM 260 pin |
Memory Speed |
2400 MHz |
Memory Channels |
Dual Channels |
ECC Memory |
Don’t support |

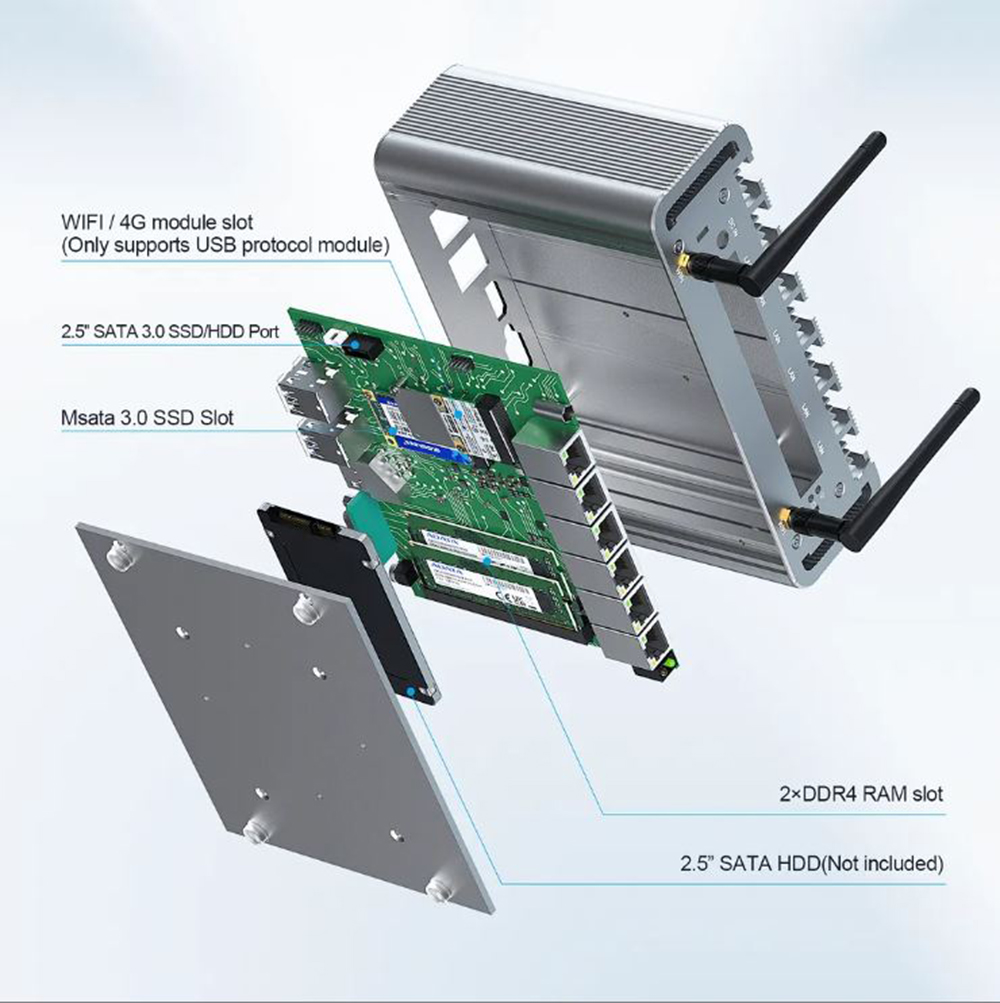

Storage Specification |
|
m.2 SSD |
No M.2 slot |
SATA |
1*SATA3.0 Slot for 2.5 inch HDD/SSD |
mSATA |
1*mSATA slot |
Graphics |
|
Processor Graphics |
Intel® UHD Graphics 600 |
HDMI |
1*HDMI 4096*2160@30Hz(4K) |
Power Specification |
|
Adapter Output |
DC 12V/5A |
Adapter Input |
AC 110-240V, 50/60HZ |
Consumption |
50W |
Auto Power On |
Support Auto Power On Function |

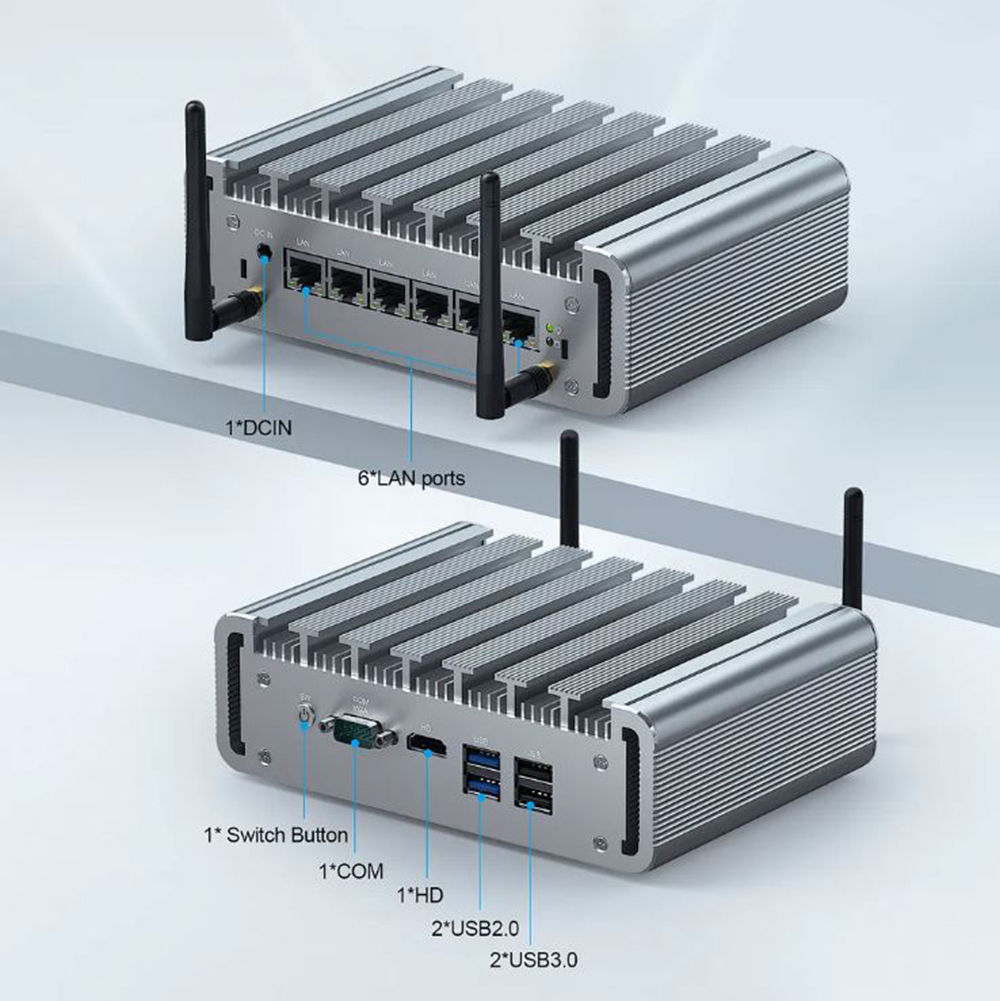

In & Out interfaces |
|
USB Port |
2*USB 3.0 port, 2*USB 2.0 port |
DC |
1*12V DC In(5.5*2.5MM) |
Video |
HDMI 4096 x 2160@30Hz 1 Display Output |
Lan Port |
6*RJ45 Lan 2.5G Gigabit Ethernet Controller, Intel I225-V |
Com Port |
1*RS232 Com port |
Wi-Fi |
Inside Wifi & Bluetooth Combo |
Others |
|
System |
Support Windows 10/11, Linux |
BIOS |
Support AUTO POWER ON, Real-TimeClock(RTC),Watchdog |
SIM |
1*SIM slot, Support SIMCARD(25*15*0.8mm) |
MPCIE |
1*MPCIE, Support 3G/4G/Wifi module |
Work Environment |
-10℃--50℃(14F~122F) , 30%--90% Humidity |
Case Material |
Full Brushed Aluminum Alloy |
Dimension |
Device size 177*125*55mm Package size 305*205*75mm |
Weight |
Net 1.3kg; Gross 2.0kg |
