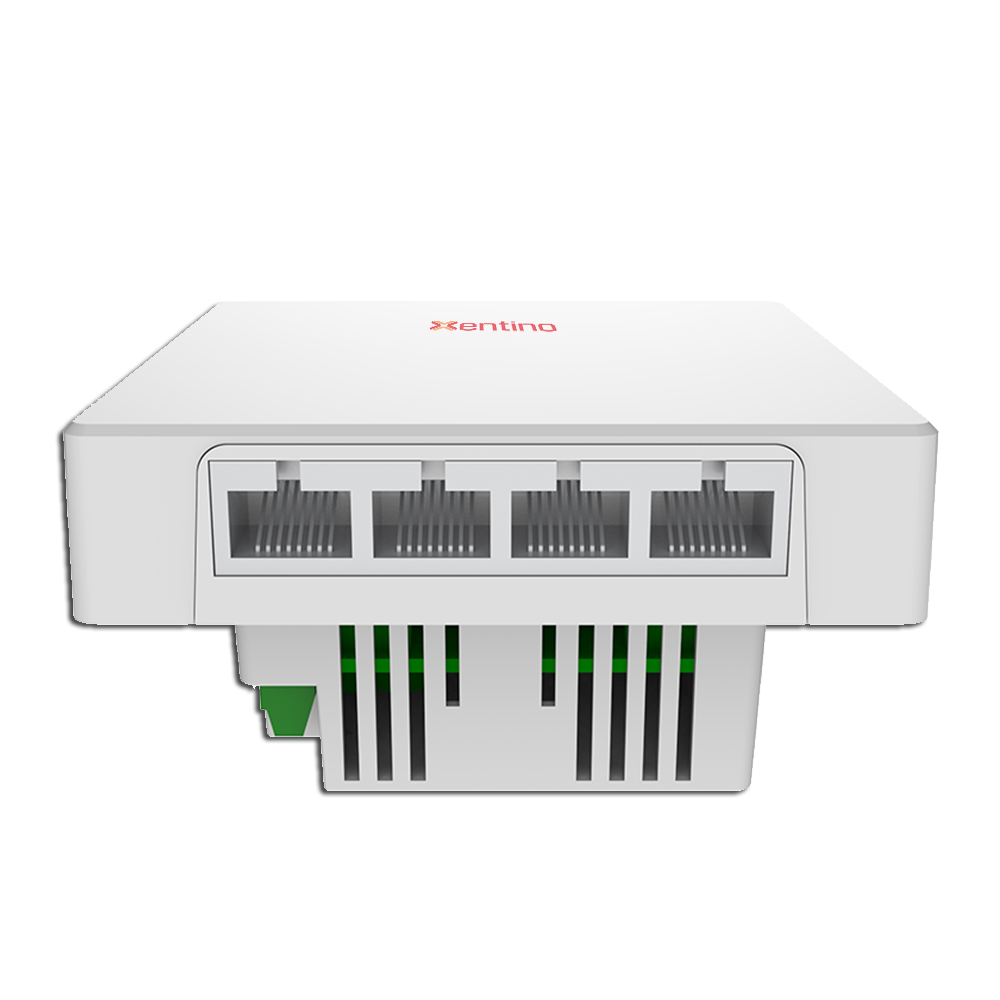

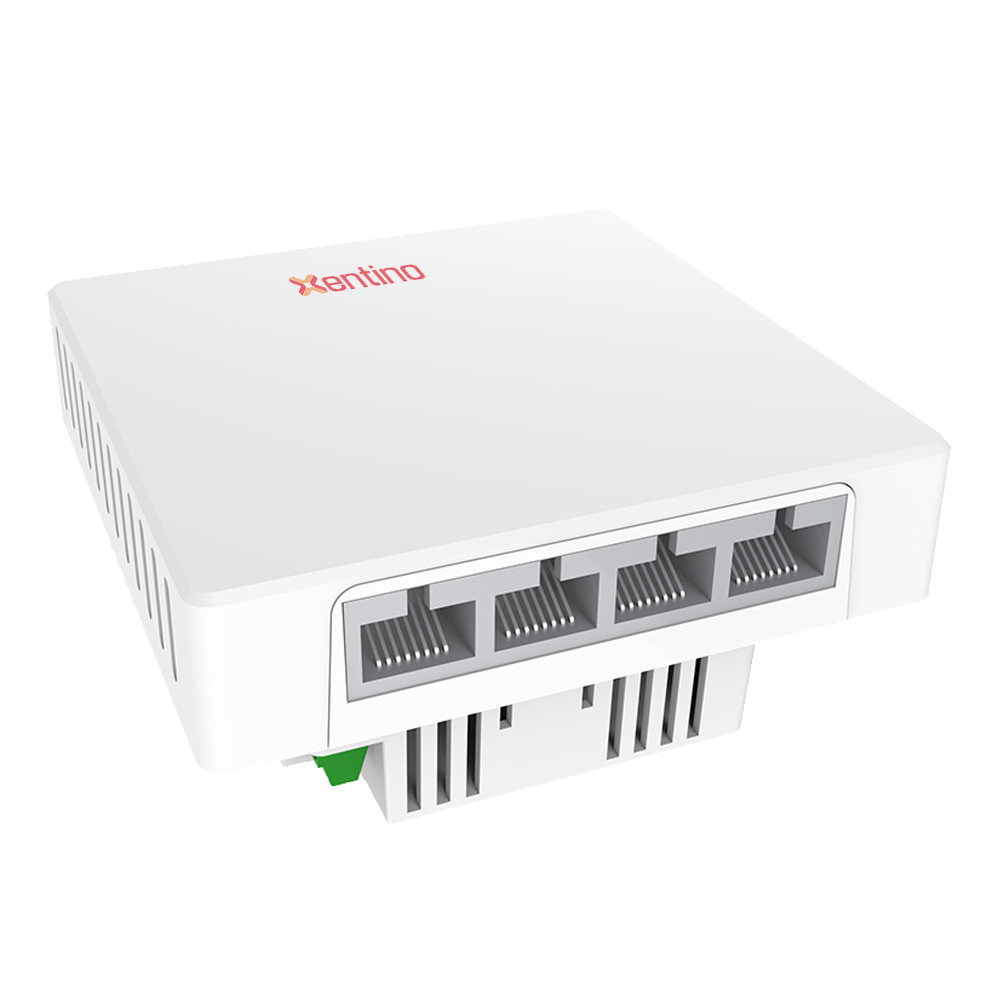

Xentino DT640 11ax 1800Mbps In-Wall Wireless AP with 4Port Switch...


Xentino DT640 is an 11ax Wi-Fi standard MTK Chipset wall mount Wireless Access Point with multiple ports and support MU-MIMO, Wave2.0, OFDMA and seamless roaming. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation.

Xentino DT640 is an 11ax Wi-Fi standard MTK Chipset wall mount Wireless Access Point with multiple ports and support MU-MIMO, Wave2.0, OFDMA and seamless roaming. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation.

Product Overview

DT640 is an 11ax Wi-Fi6 standard MTK Chipset high performance in wall wireless access point with multiple ports and support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.

Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz

(1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.

More Users with Wireless AX Technology (WiFi6)

Wireless data rate up to 1.8Gbps. 802.11ax support 1024QAM, long OFDM symbol, 160M bandwidth and 11ax 2x2 MIMO technology, the wireless data rate up to 1.8Gbps, meet with demand of high-speed applications such as VR/ AR, 4K or 8K stream media.

More Bandwith with Mu-MIMO Technology

DL/ UL MU-MIMO. 802.11ax support both downlink MU-MIMO and uplink MU-MIMO. It can communicate with multiple end users at the same time, greatly improving the user’s uplink transmission rate and the system’s uplink and downlink capacity, improving the efficiency of multi-user concurrent scenarios, reducing the terminal application latency.

Multiple application scene and Central management

Work with WLAN controller and PoE switch, plug and play, then allow administrator to manage it in centrally and remotely, suit for hotel, school, hospital, provide stable wireless access, promote advertisement and collect user information for second time sales.

Work with multiple function smart router, plug and play, easy to provide high security dual band wireless access for end users and gigabit Ethernet for IPTV. Then all cable is embedded in the wall, safety, tidy and perfectly comply with home decoration.

HARDWARE SPECIFICATIONS

Chipset

MT7621DAT+MT7905DN+MT7975DN

Standard

802.11ax/ac/b/g/n

Flash

SPI NOR 16MB

Memory

128MB

2.4G Frequency

2.4GHz - 2.484GHz

2.4G Wi-Fi standard

802.11b/g/n/ac/ax

5.8G Frequency

5150~5850MHz

5.8G Wi-Fi Standard

802.11 a/n/ac/ax

Interface

1 * 10/100 /1000 RJ45 WAN Port

4 * 10/100 /1000 RJ45 LAN Ports (Optional: 3*10/ 100/ 1000 RJ45 LAN, 1* RJ11)

1 * Reset button, press 10 seconds to revert to default setting

Antenna

2.4G: 2dBi; 5G: 4dBi

Data Rate

1800Mbps

End Users

120+

RF Power

2.4G≤20dBm; 5.8G≤19dBm

PoE

48V (IEEE 802.3af/at)

LED light

Sys

Power Consumption

≤ 14W

ESD

±6KV

Size

86mmX86mmX45mm

FIRMWARE SPECIFICATIONS

Working Mode

Gateway, AP

Wireless Functions

Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.

Support SSID hidden

Support seamless roaming, 802.11kvr standard.

Support 5G Prior for a faster Ethernet.

Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP,

Support MAC filter

Support Wi-Fi time on/off to save energy

Support client isolation to improve the wireless stability

Support RF power adjustable, adjust the RF power based on environment.

Support user quantity limited, Max 64 users to access each band.

Networking Function

VLAN settings

Cloud access support in gateway mode

Device Management

Back-up the configuration

Restore the configuration

Reset to factory default

Reboot the device: including time reboot or reboot immediately

Admin management password modify

Firmware upgrade

System log

Support firmware GUI web management, AC controller management, remote management and cloud management

Protocols

IPv4

ANTENNA SPECIFICATIONS

Frequency Range

2.4-2.5GHz

Impedance

50 Ohms nominal

Gain

2dBi

Radiation

Omni

Polarization

Linear

Return Loss/VSWR
