Programmable IoT Gateway with Rich I/O

MR351W is an OpenWrt based Linux OS industrial IoT gateway, which provides C/C++, Python programmable embedded environment for IoT developers and programmers to implement their industrial applications in a flexible and easy way.

MR351W has rich I/O like RJ45, RS232/RS485, DI/DO, USB, WIFI, GPS, and protocols such as MQTT, Modbus RTU/TCP, Modbus to Json, TCP/UDP, to collect and transfer the data from diverse sensors and controllers to the cloud, and remotely control the industrial equipment. Besides, its captive portal feature is ideal for WIFI advertisement applications of transportation.

MR351W has option of dual sim or dual module for failover or load balance, provides secure, robust and reliable wireless and wired connectivity for your mission-critical industrial applications, and it has been widely used for air compressor monitor and control, bus WIFI advertisement, water pump control, electricity substation monitor, etc.

Key Features

• Global 4G LTE/3G/2G cellular network supported
• Dual SIM or dual module supports failover or load balance mode1, auto switchover between wireless and wired WAN

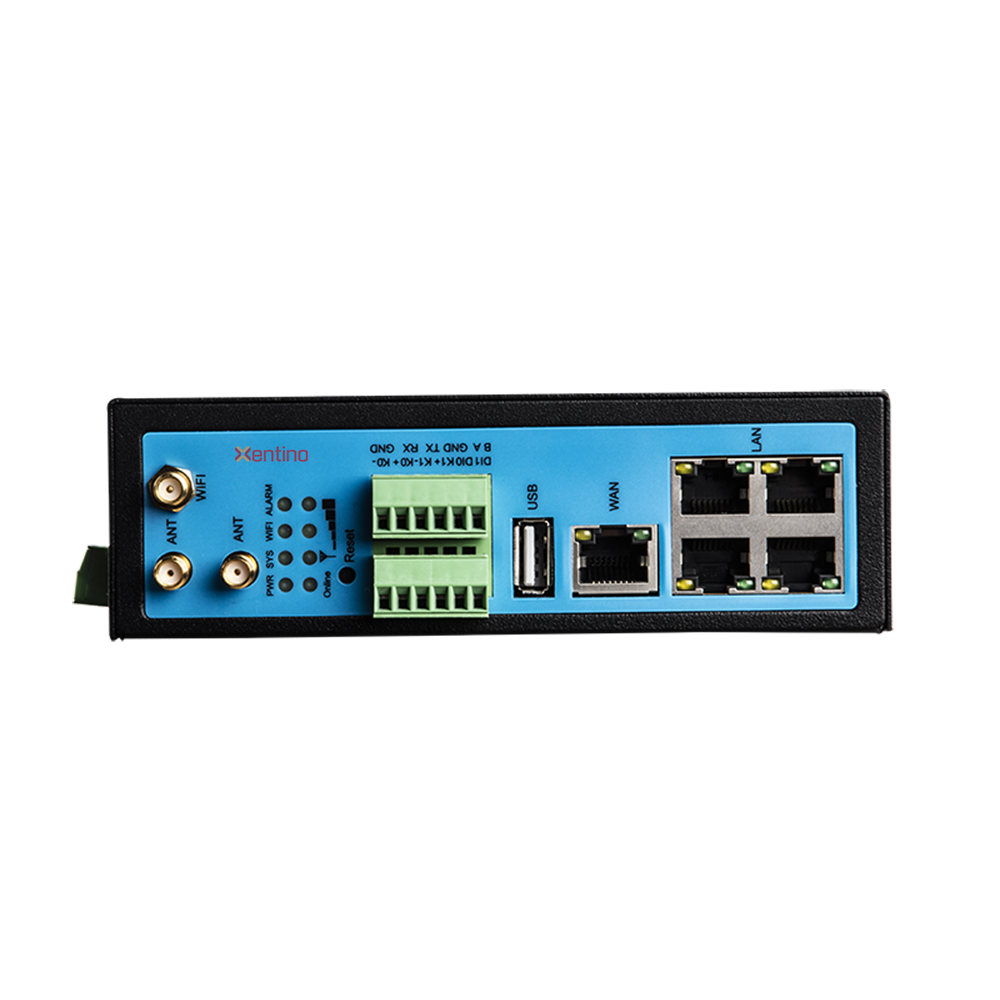

• Rich interfaces: 4-LAN, 1-WAN, 1-USB, 2-DI, 2-Relay, 1-RS232, 1-RS485, WIFI(802.11b/g/n), GPS(Option)
• LTE/3G/PPPoE DHCP and static address connection
• Captive portal for WIFI advertisement solution of transportation2
• APN/VPDN, and multiple VPN protocols, IPsec, L2TP, PPTP, GRE and OpenVPN, to ensure secure data transmission
• DHCP server, DHCP binding MAC address, DDNS, firewall, NAT, DMZ host, QoS, traffic analysis
• MQTT, Modbus RTU/TCP, TCP/UDP, HTTP, SNMP protocols
• SPI Firewall, Access Control, Port Mapping, DMZ Mapping, Access Control List (ACL), IP-MAC binding and Clone function
• Web UI, telnet & SSH CLI, AT Command configuration
• Web upgrade, local and remote syslog, serial port output log
• SMS commands and DMP(Device Management Platform)3 for remote configuration and management
• OpenWrt based Linux OS, provides programmable environment via C/C++, Python, LUA, SDK

Cellular Interfaces			Software
Antenna Connector	2x50Ohm - SMA Female		Network Protocols	PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2,
SIM Slot	1 or 2 (DSSM or DSDM)			OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH
ESD Protection	15KV		Serial Port	MQTT, Transparent (TCP Client/Server, UDP Client/Server)
Ethernet Interfaces				Modbus Gateway (Modbus RTU to Modbus TCP)
Ports	5xRJ45 (1xWAN, 4xLAN – 5th ETH LAN/WAN Configurable)		VPN Tunnel	IPSec/PPTP/L2TP/GRE/OpenVPN
Data Rates	10/100Mbps (Auto-Sensing), Auto MDI/MDIX		Firewall	ACL/DMZ/Port Mapping/MAC Binding
ESD Protection	1.5KV		Management	Web, CLI, SMS, Cloud, DMP (Device Management Platform)
Serial Interfaces			Reliability	WWAN and WAN Failover, Dual SIM backup and Load Balance,
Connector	Terminal Block, 3.5mm Female Socket with Lock			Hardware & Software WatchDog
Ports	1xRS232, 1xRS485		Secondary Development	OpenWRT based Linux OS, support C/C++, Python, LUA and SDK
Baud Rate	300bps to 230400bps		Physical Characteristics
ESD Protection	8KV for RS232, 15KV for RS485		Ingress Protection	MR351W Datasheet There is no other product related this product . There is no "How to Make" document related this product . TR EN
