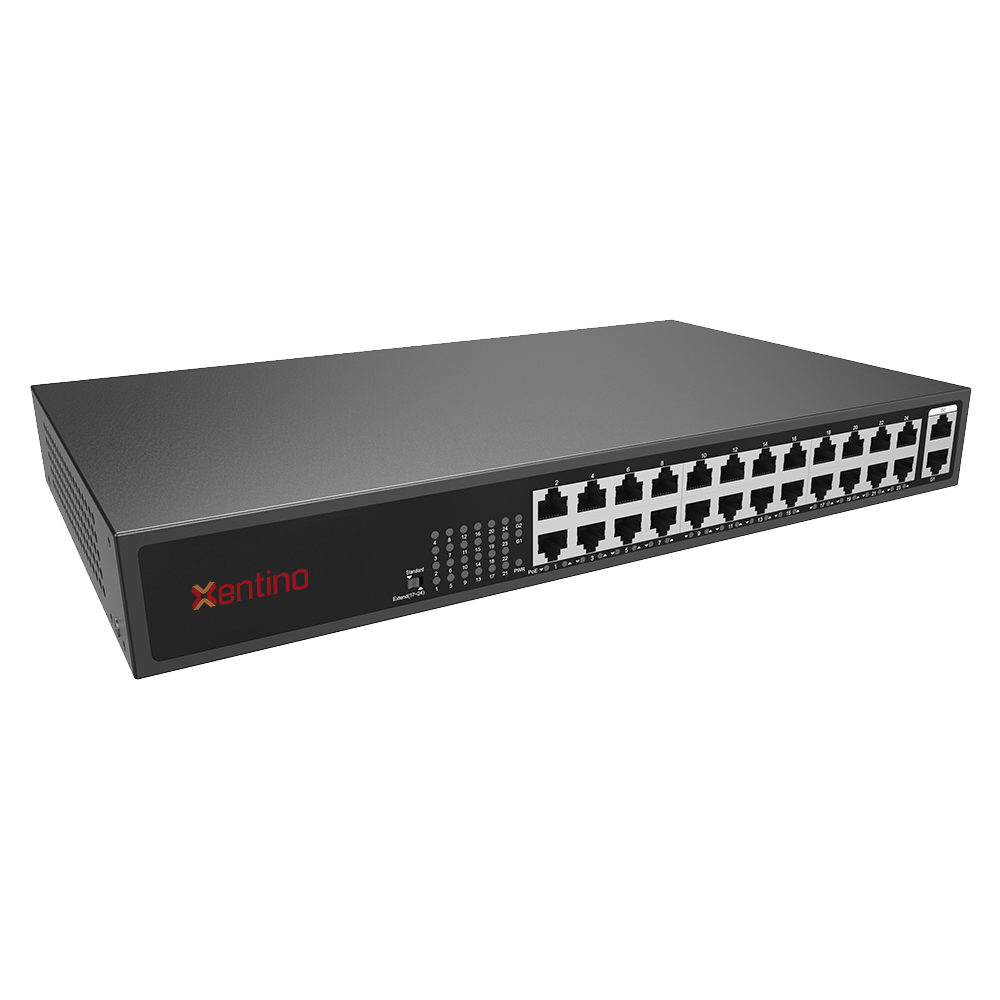

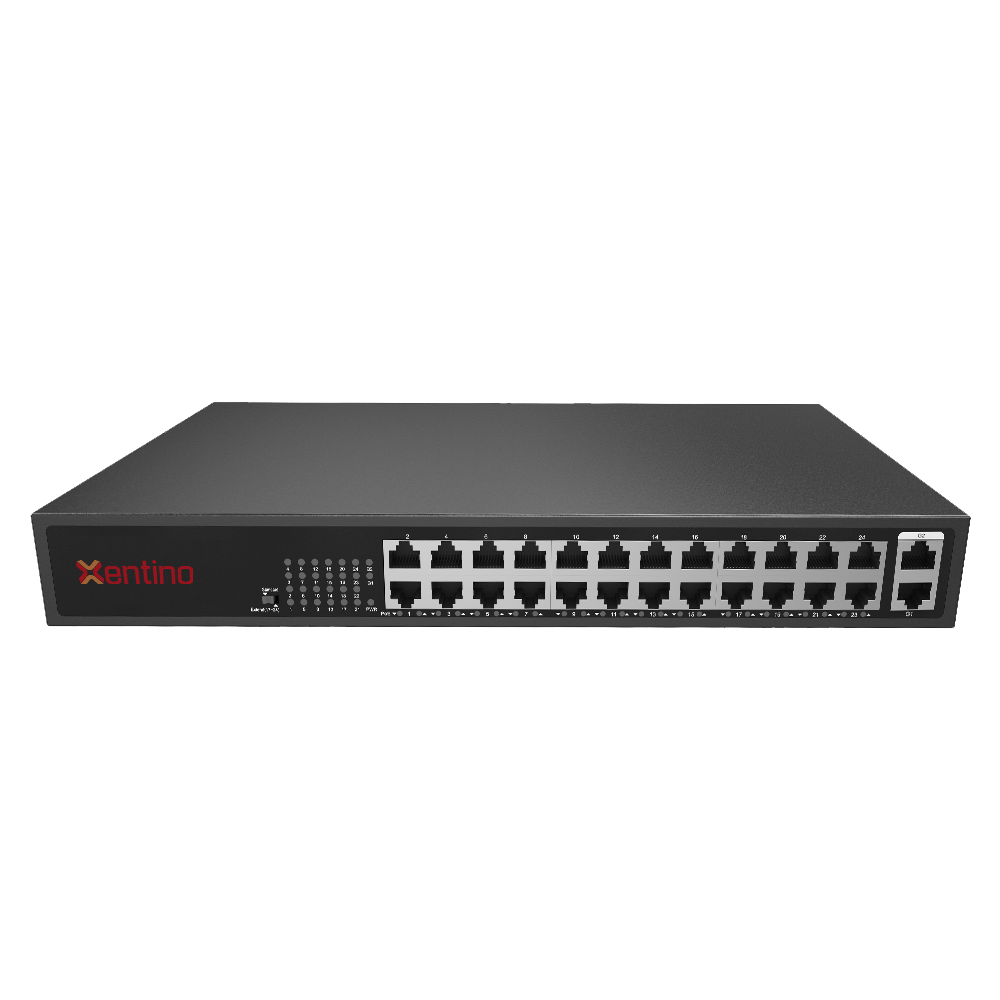

Xentino S2402P 24Port 10/100Mbps POE + 2Port Gigabit (RJ45) Unmanaged Switch (250W).
The S2402P is a Gigabit uplink PoE switch independently developed by Xentino. It has 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24 can support IEEE802.3af/at standard PoE. Single port PoE power up to 30W, and the maximum POE output power is 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.

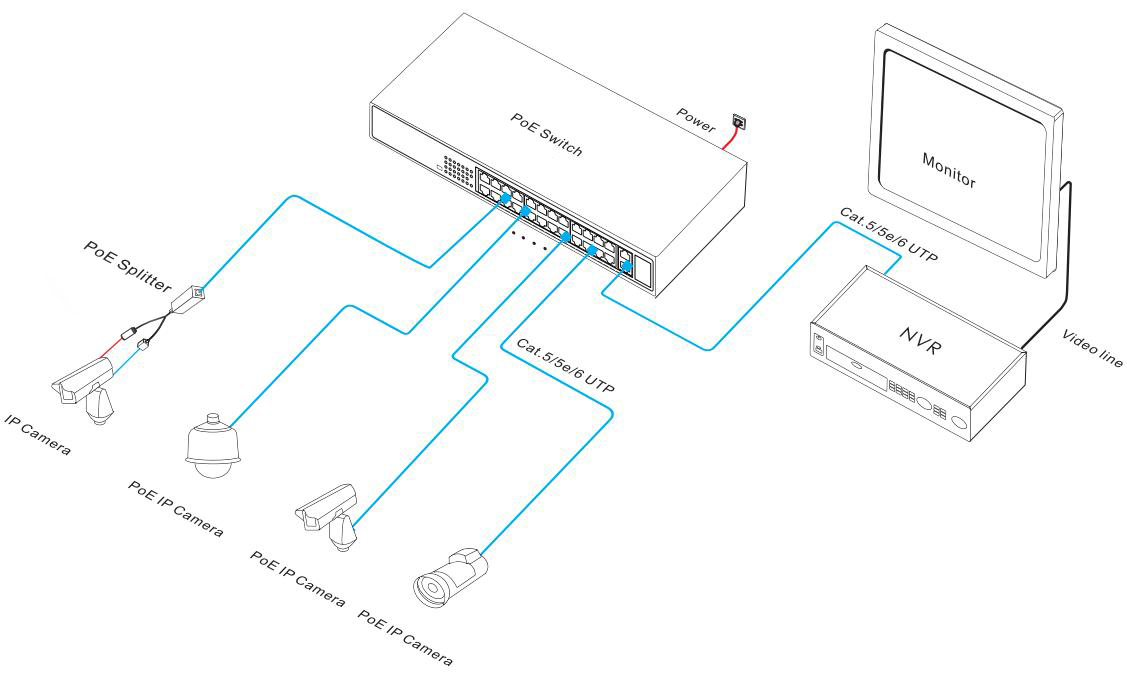

The S2402P is a Gigabit uplink PoE switch independently developed by Xentino. It has 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24 can support IEEE802.3af/at standard PoE. Single port PoE power up to 30W, and the maximum POE output power is 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy. Unmanaged model, plug and play, no configuration, easy to use.
FEATURES
10/100M access, Gigabit uplink
◇ Provides 24*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply
◇ 24*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable, easy to use
◇ CCC,CE, FCC, RoHS.
◇ Support desktop and 1U-19 inch cabinet installation.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, galvanized steel casing, no fan.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ With function switch, port 17-24 can support 10M/250 meters long distance transmission mode when one key is opened.
TECHNICAL SPECIFICATION
|
XENTINO S2402P |
|
|
Interface Characteristics |
|
|
Fixed Port |
24*10/100Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 |
|
Ethernet Port |
Port 1-24 can support 10/100Base-TX, Port 25-26 can support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
Special Function |
After opening, port 17-24 can support 10M/250 meters long distance transmission. Note: when the switch state changes, it must be restarted before the PoE switch function can take effect |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
14.8Gbps (Non-blocking) |
|
Forwarding Rate |
6.55Mpps (@64byte) |
|
MAC |
16K |
|
Buffer Memory |
4M |
|
Jumbo Frame |
9.6K |
|
LED Indicator |
Power:PWR (green), network : Link(yellow),PoE: PoE (green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 24 IEEE802.3af/at @POE |
|
Power Supply Pin |
Default 1/2(+), 3/6(-), optional 4/5(+), 7/8(-) |
|
Max Power Per Port |
30W, IEEE802.3af/at |
|
Total PWR / Input Voltage |
250W /(AC100-240V) |
|
Power Consumption |
Standby<20W, Full Load<250W |
|
Power Supply |

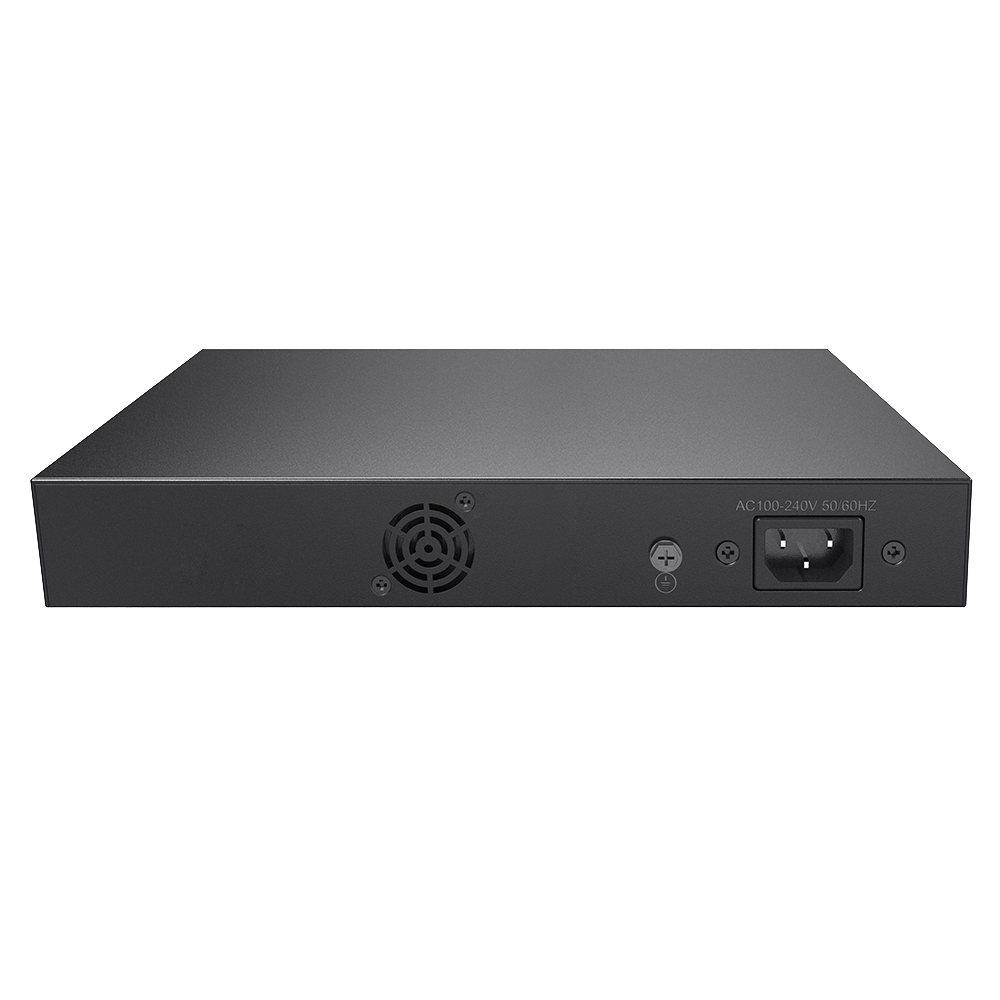

Built-in power supply, AC 100~240V 50-60Hz 4.1A |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|

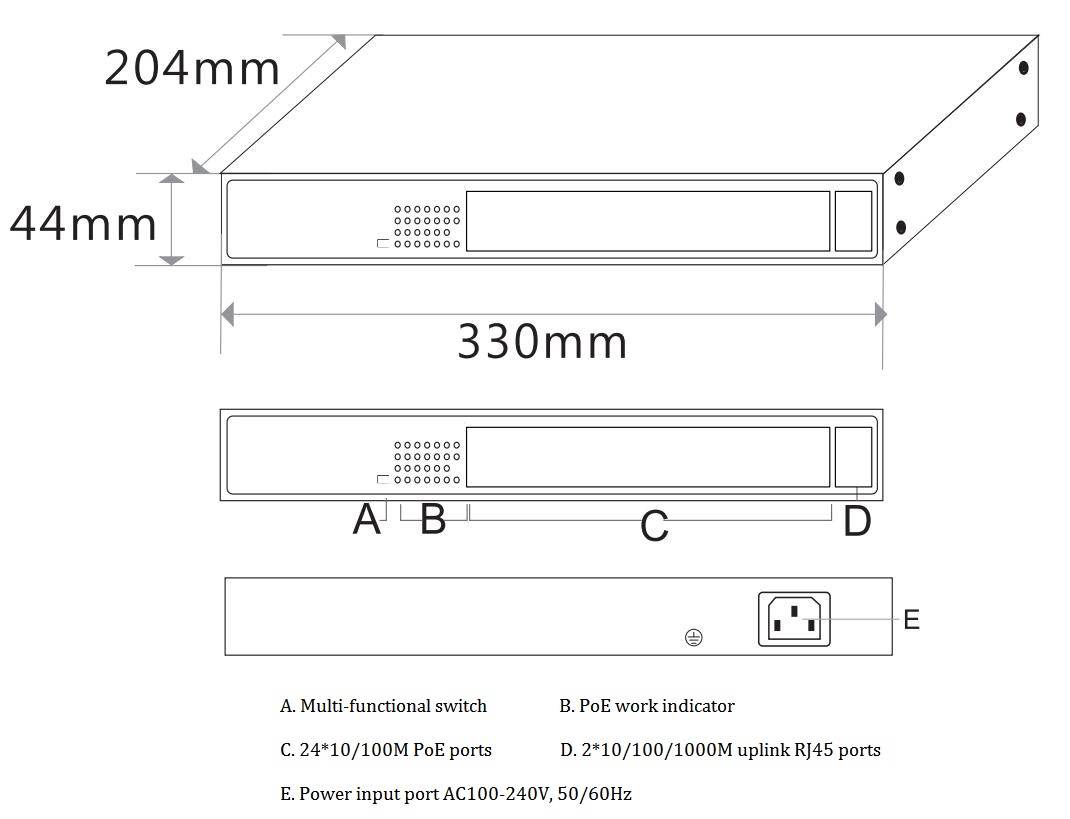

Dimension |
330*204*44mm (L*W*H) |
|
Net /Gross Weight |
<2.3kg / <3kg |
|
Form Factor |
Desktop, wall mounted,19 inch 1U cabinet |
|
Certification & Warranty |
|
|
Lightning Protection / Protection Level |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS |
|
Warranty |
1 years, lifelong maintenance. |
