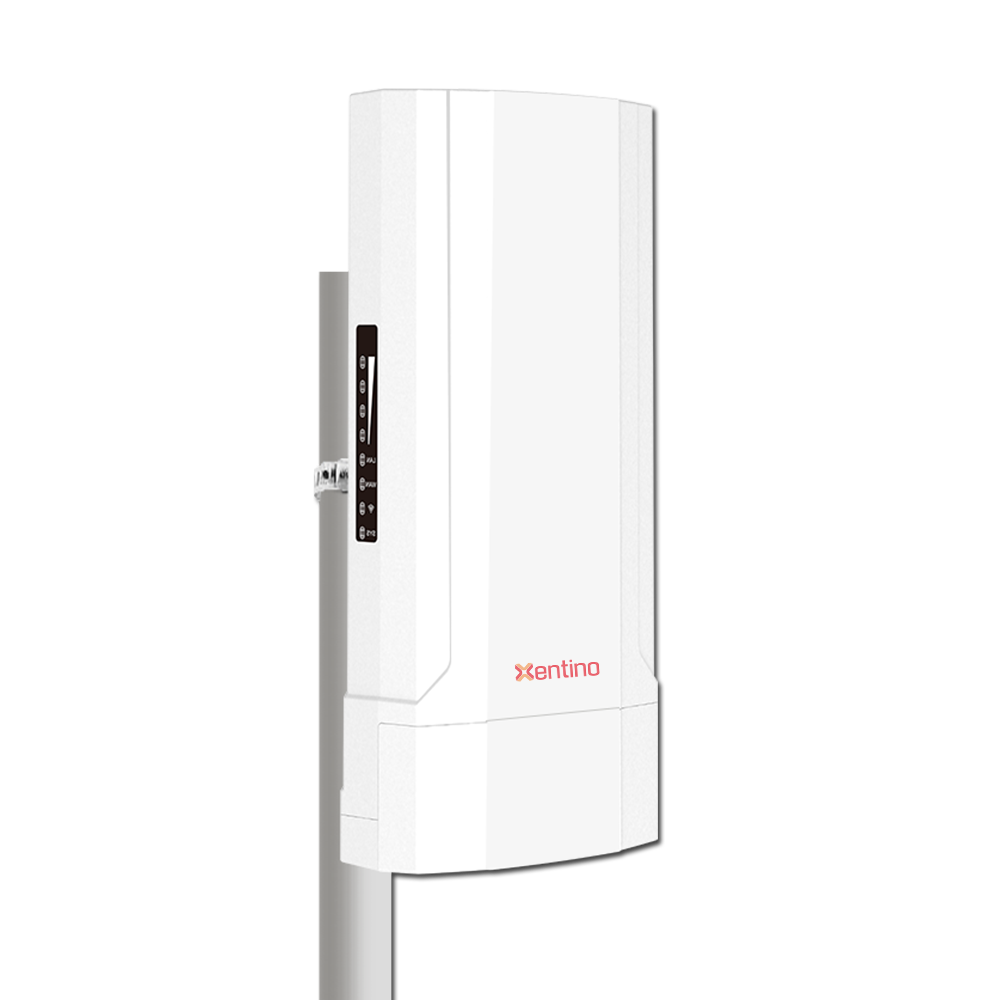

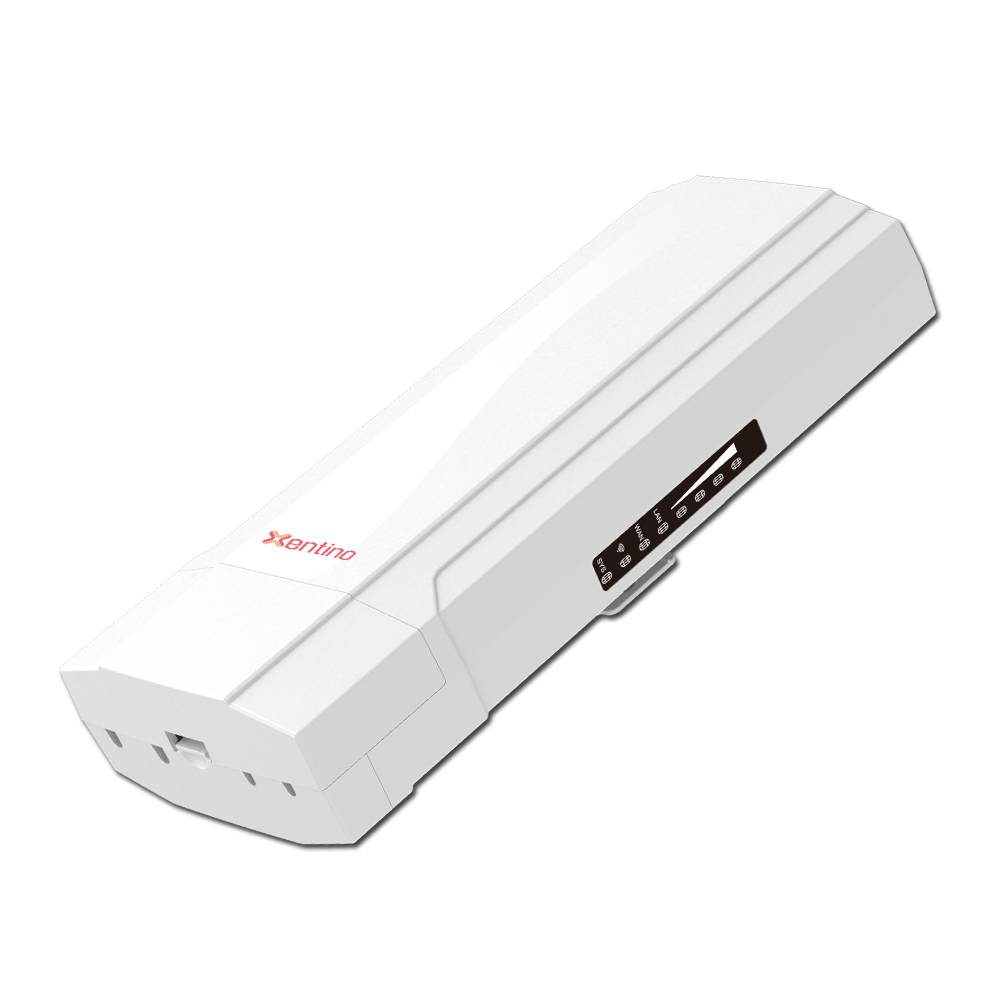

DA1200 is the 1200Mbps high power industrial use Outdoor wireless access point with the next generation 802.11ac Wi-Fi standard, support 2x2 MU-MIMO technology, it is dual band, 2.4GHz (300Mbps) and 5GHz (900Mbps), Gigabit WAN/LAN port, the fast Ethernet data rate and clear frequency make 100+ end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

Main Features

• Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
• 1*10/100/1000Mbps WAN Port，1*10/100/1000Mbps LAN Port
• 300mW high power, Qualcomm Chipset, 16M Flash, 128M DDR2 RAM, more user, more stable
• Support 48V active PoE, work with IEEE 802.3at standard PoE switch or 48V PoE adapter.
• Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz), support tag VLAN based on SSID to protect the whole data safety.
• Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
• With function of firewall, IP filter, URL filter and MAC filter
• Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
• Support DDNS, VPN pass through, Port forwarding and DMZ host

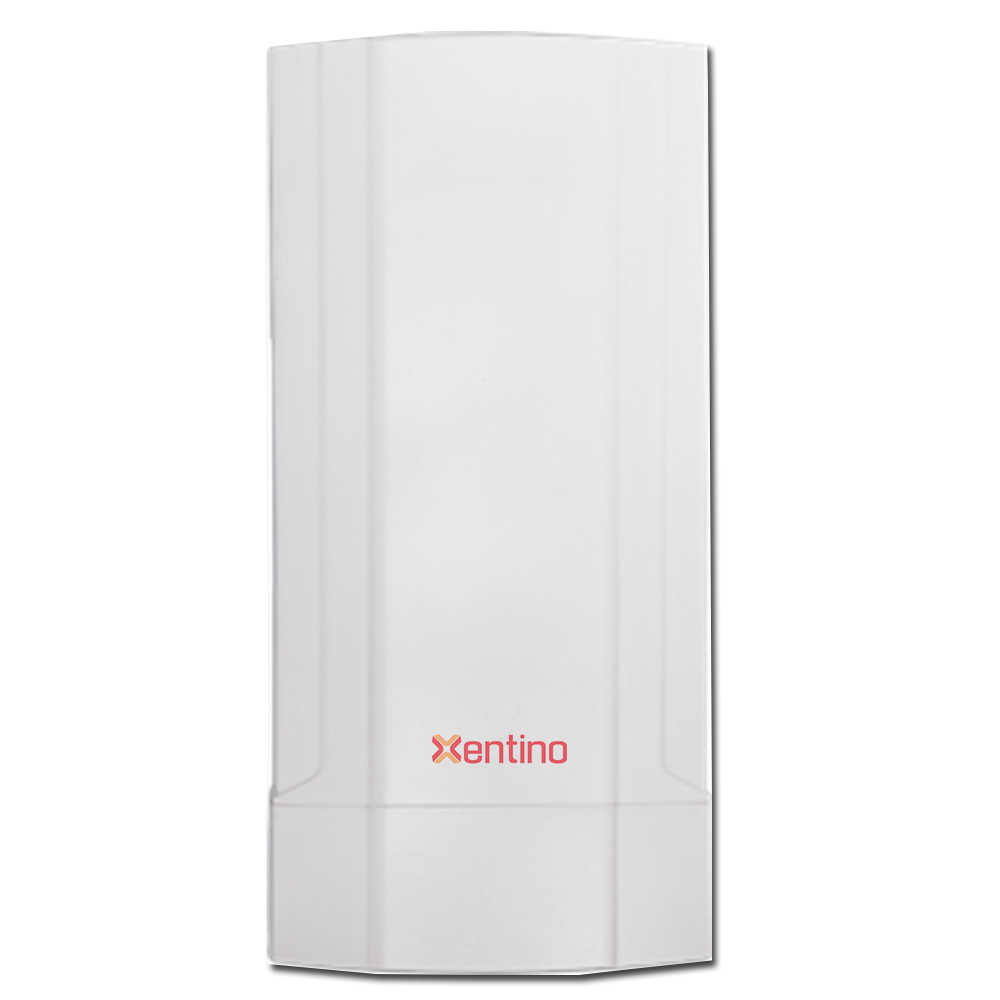

ABS weather-proof case

DA1200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, rainy weather. Meantime, it adaptive to various environment, the maximum working temperature can be at -40℃ to 55℃. Suit for any country.

High Power, 5dBi omni antenna, more Wi-Fi Range

Designed in two line Power Amplifier on PCB board, the power can be 300mW high power, build in 5dBi omni Wi-Fi antenna, outdoor Wi-Fi range up to 100 meters.

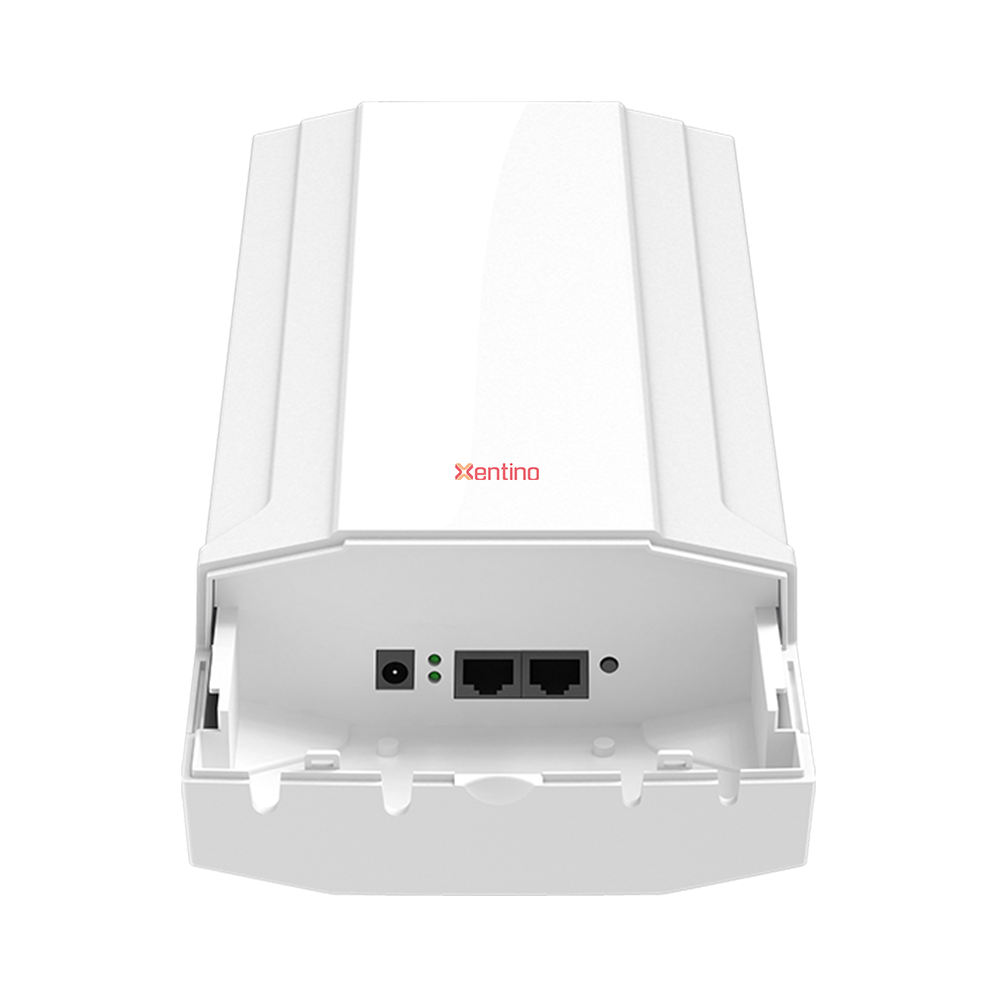

Power over Ethernet

DA1200 has integrated active Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. Pls note, the default is 48V IEEE 802.3at PoE, 24V Passive PoE is possible by change PCB board.

MU-MIMO, Wave2.0 Technology

Comply with Wave2.0 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), greatly to improved the communication efficiency.

Beamfrorming, DFS, Airtime Fairness, Band Steering, OFDM support

DA1200 support many functions like Beamfrorming, DFS(Dynamic Frequency Selection), Airtime Fairness, Band Steering (5G Prior), OFDM (Orthogonal Frequency Division Multiplexing), RF Power adjustable to improve the performance and Wi-Fi stability.

Access Controller System & Cloud Management System

Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore. Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in Wi-Fi Projects.
