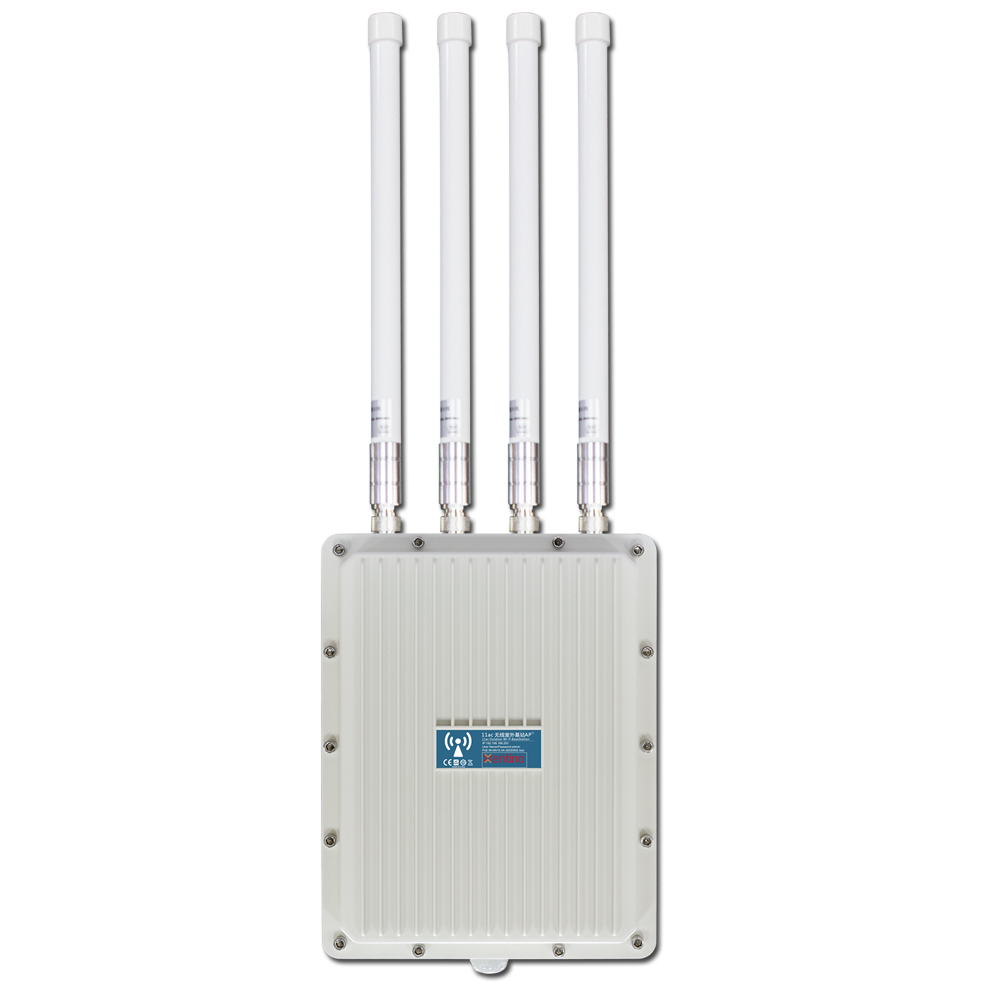

Xentino DA080 11ac Wave2.0 1200Mbps High Power Outdoor Wireless AP..

Xentino DA080 11ac Wave2.0 1200Mbps High Power Outdoor Wireless AP..


DA080 is an Qualcomm Solution MU-MIMO 11ac high power industrial use Outdoor access point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

DA080 is an Qualcomm Solution MU-MIMO 11ac high power industrial use Outdoor access point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

Product Overview
DA080 is an Qualcomm Solution MU-MIMO 11ac high power industrial use Outdoor access point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

Main Features

  • Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
  • 1 10/100/1000Mbps WAN Port，faster Ethernet.
  • 500mW high power, can connect with external antenna for stronger signal strength and more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
  • Support IEEE 802.3at PoE standard
  • Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
  • Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
  • With function of build in firewall, IP filter, URL filter and MAC filter
  • Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
  • Support DDNS, VPN pass through, Port forwarding and DMZ host
  • Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security



Hardware

Chipset

Qualcomm QCA9563 + QCA9886 +QCA8334

Standard

802.11ac/b/g/n, MU-MIMO technology

Memory

128MB DDR2 RAM

Flash

16MB

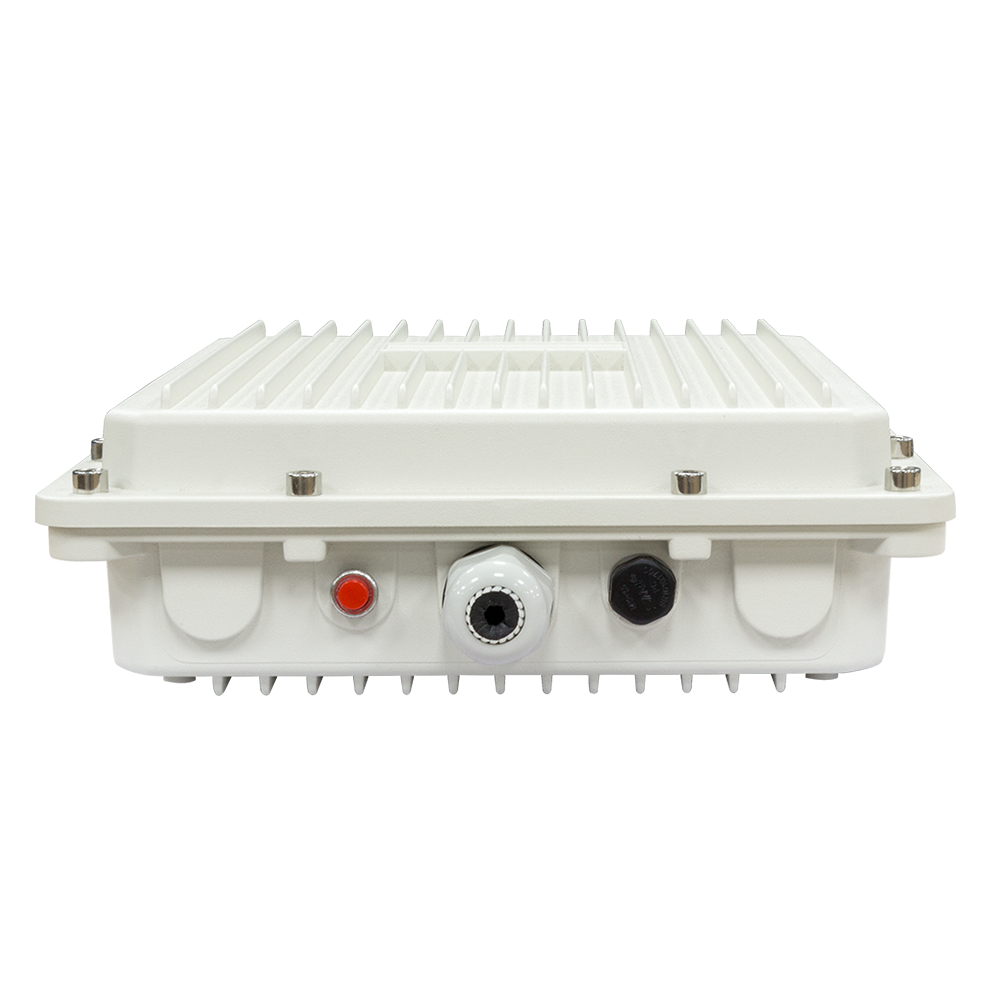

Interface

1 * 10/100 /1000Mbps RJ45 WAN Port

1 * Reset button, press 15 seconds to revert to default setting

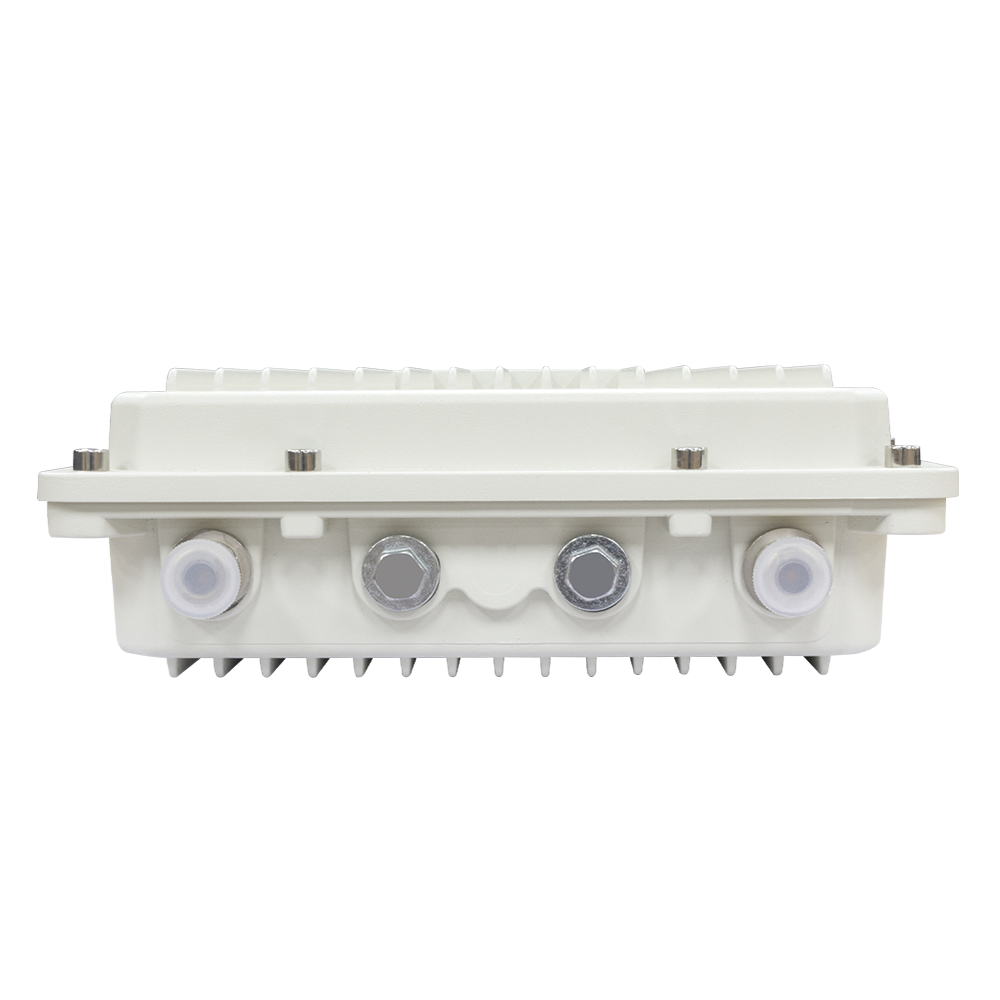

Antenna

4PCS N type antenna connector

Power consumption

48V PoE<30W

Weight

4KGS

RF Data

Frequency

2.4G: 802.11b/g/n;   5GHz: 802.11a/n/ac

2.4GHz: 2.312GHz to 2.4835GHz

5GHz: 5.020 - 6.1000 GHz

Modulation

OFDM = BPSK,QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK

Throughput

1200 Mbps

2.4G RF Power

802.11b

11M

23±2dBm

1M

25±2dBm

802.11g

54M

22±2dBm

6M

24±2dBm

802.11n HT20

MCS7

21±2dBm

MCS0

23±2dBm

802.11n HT40

MCS7

20±2dBm

MCS0

22±2dBm

5G RF Power

802.11a

54M

21±2dBm

6M

24±2dBm

802.11n HT20

MCS7

21±2dBm

MCS0

24±2dBm

802.11n HT40

MCS7

20±2dBm

MCS0

23±2dBm

802.11ac HT80

MCS9

19±2dBm

MCS0

22±2dBm

2.4G Receive Sensitivity

802.11b

11M

-85dBm

1M

-94dBm

802.11g

54M

-72dBm

6M

-90dBm

802.11n HT20

MCS7

-70dBm

MCS0

-88dBm

802.11n HT40

MCS7

-68dBm

MCS0

-86dBm

5G Receive Sensitivity

802.11a

54M

-72dBm

6M

-90dBm

802.11n HT20

MCS7

-70dBm

MCS0

-88dBm

802.11n HT40

MCS7

-68dBm

MCS0

-86dBm

802.11ac HT80

MCS9

-58dBm

MCS0

-85dBm

EVM

2.4G: 802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB

5G: 802.11a: ≤-25dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB

PPM

±20ppm

Max Users

128+

Firmware Features

Operation mode

Wireless AP, Gateway, WISP, Wi-Fi Repeater

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)

Wireless Security

64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

SSID

Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)

Firewall

DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Protocols

IPv4

Others

Package Contents

1200Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux

Environment

Operating Temperature: -40~50 ℃,  Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Management

Firmware GUI , Remote Management, WLAN Controller, Cloud Management System

ANTENNA SPECIFICATIONS

Frequency Range

2.4GHz & 5.8GHz

Impedance

50 Ohms nominal

Gain

6dBi

Radiation

Omni

Polarization

Vertical

Connector

N-J

MM Dimension

¢20*350mm



DA080 Datasheet
