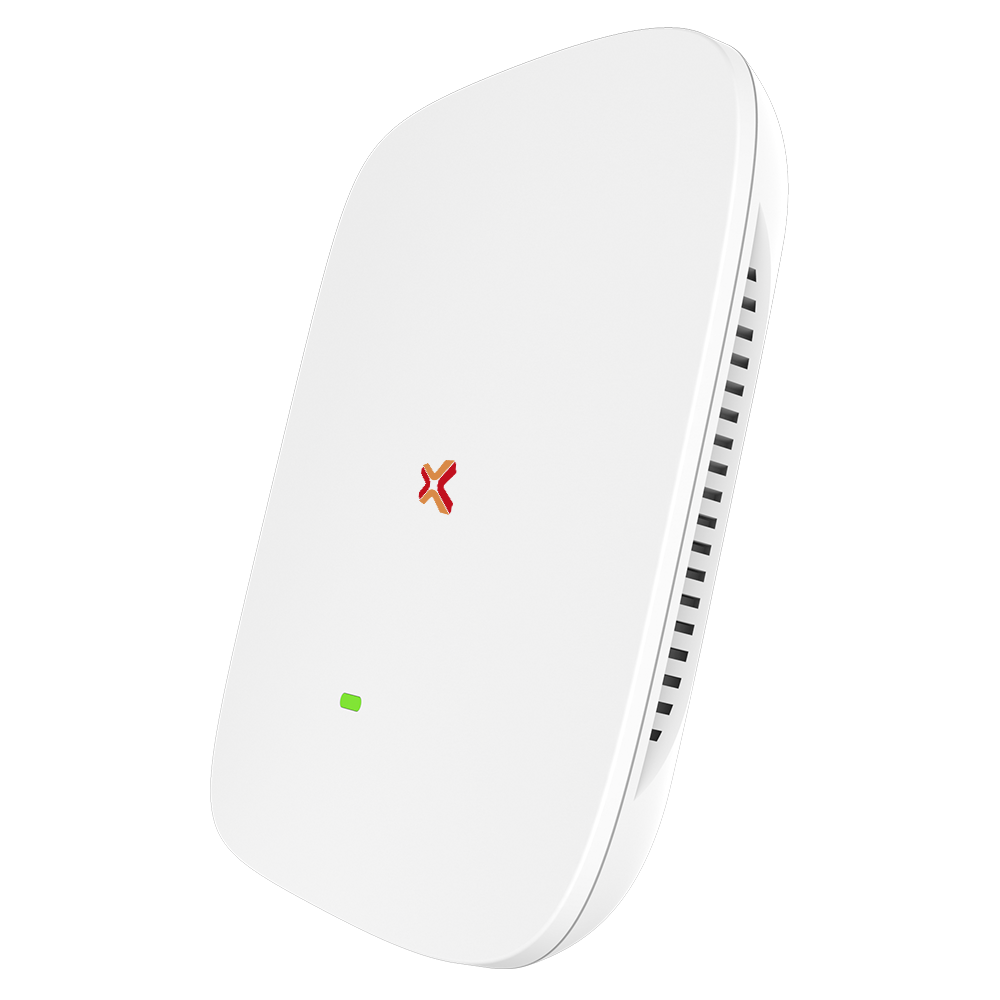

Xentino C840 11ax 1800Mbps Ceiling Wireless AP


C840 is an 11ax Wi-Fi6 standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0 OFDMA and Seamless Roaming. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation.

C840 is an 11ax Wi-Fi6 standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.

Product Overview

Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2) + 5GHz (1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.

Main Features

  • Qualcomm 4-core enterprise CPU with more stable performance
  • Comply with IEEE 802.11ax/ac/b/g/n, dual band, 1800Mbps Data Rate
  • 1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port to meet with different customer’s request
  • Support active IEEE 802.3af 48V PoE standard



4CORE HIGH PERFORMANCE CPU
Qualcomm 4-core enterprise CPU with more stable performance.

802.11AX WIFI6 HIGH PERFORMANCE
Wireless data rate up to 1.8Gbps. 802.11ax support 1024QAM, long OFDM symbol, 160M bandwidth and 11ax 2x2 MIMO technology, the wireless data rate up to 1.8Gbps, meet with demand of high-speed applications such as VR/ AR, 4K or 8K stream media.

1024QAM ADVANTAGES
1024-QAM Modulation Mode. 802.11ax adopt 1024-QAM modulation, which is more efficient than 802.11ac modulation, the throughput of single spatial traffic is increased by 25%.

MU MIMO ADVANTAGES
DL/ UL MU-MIMO. 802.11ax support both downlink MU-MIMO and uplink MU-MIMO. It can communicate with multiple end users at the same time, greatly improving the user’s uplink transmission rate and the system’s uplink and downlink capacity, improving the efficiency of multi-user concurrent scenarios, reducing the terminal application latency.

POWER SAVING WITH TWT
TWT (Target Wake-up Time). 802.11ax support TWT, allowing devices to negotiate when need to wake up, send and receive data. In additional, wireless AP can group the device into different TWT cycles, increase sleep time, reduce the device competing after wake-up, and save the device power.

MORE COVERAGE WITH OFDM
Coverage Improvement. 802.11ax support long OFDM symbol transmission mechanism and 2MHz narrowband transmission, effectively reduced the packet loss rate and noise interference, improve the receive sensitivity and increase the WiFi coverage.

Chipset

IPQ6000

Standard

802.11ax/ac/b/g/n

Flash

SPI NOR 8MB (1.8v) + NAND 128MB

DDR3L

512MB*2=1GB

2.4G Frequency

2.4GHz - 2.484GHz

2.4G Wi-Fi standard

802.11b/g/n/ax

5.8G Frequency

5150~5850MHz

5.8G Wi-Fi Standard

802.11 a/n/ac/ax

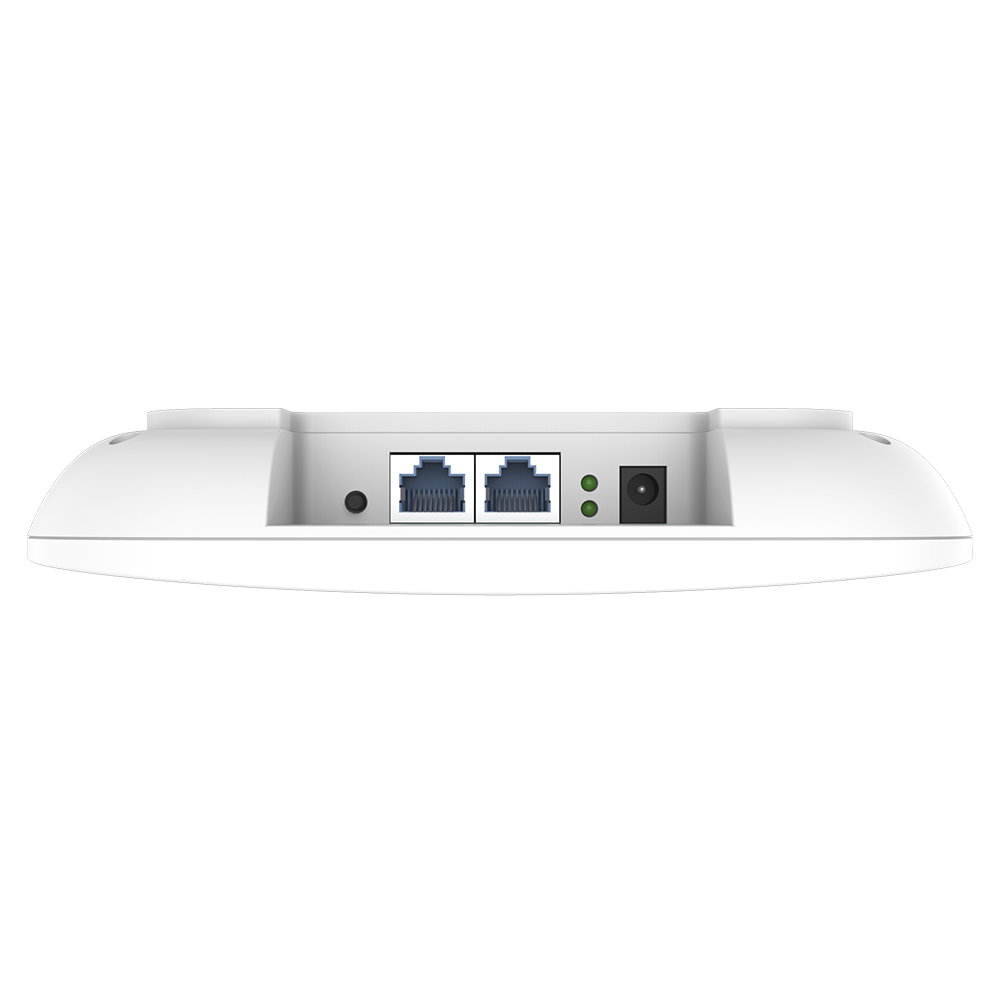

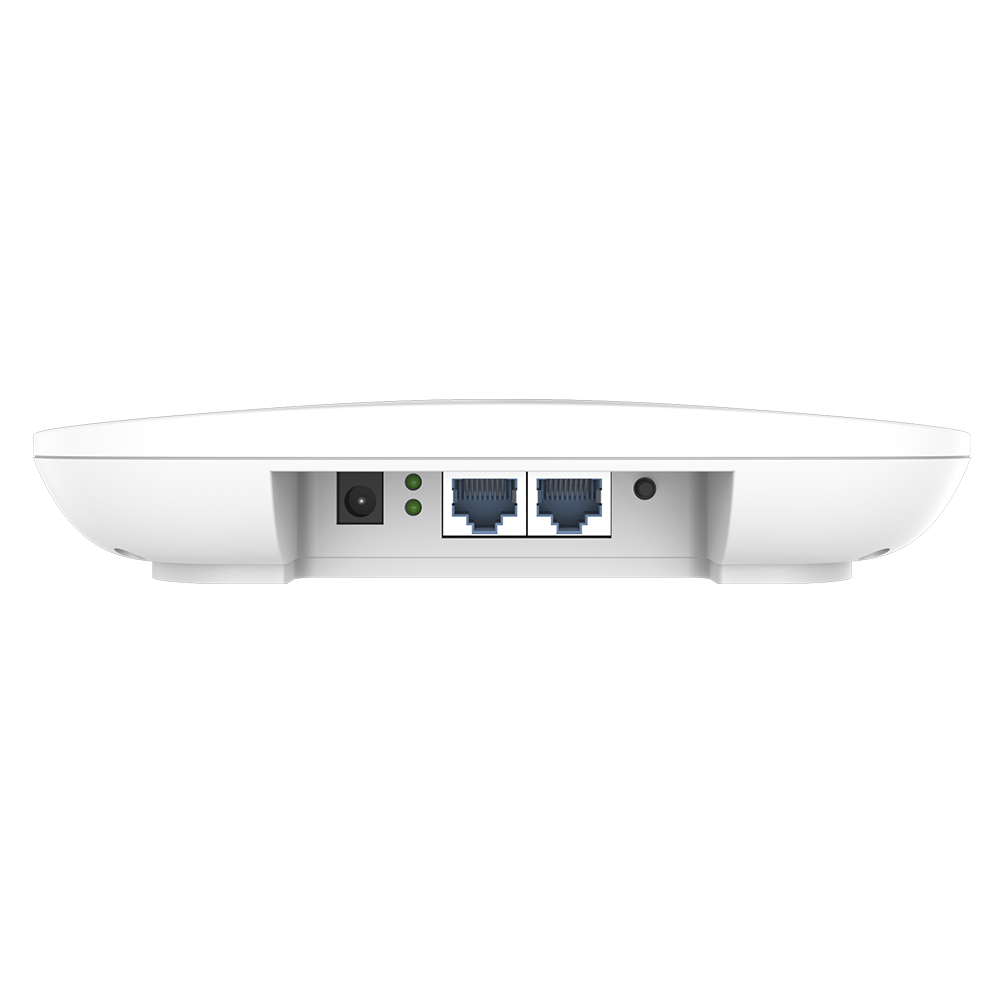

Interface

1 * 10/100 /1000 RJ45 WAN Port

1 * 10/100 /1000 RJ45 LAN Port

1 * Reset button, press 10 seconds to revert to default setting

Antenna

Build in 4*4dBi dual band MIMO Antenna

Data Rate

1800Mbps

End Users

150+

2.4G RF Power

≤ 20dBm

5.8G RF Power

≤ 19dBm

2.4G Receive Sensitivity

802.11b

11M

-90dBm

1M

-98dBm

802.11g

54M

-77dBm

6M

-93dBm

802.11n HT20

MCS7

-72dBm

MCS0

-92dBm

802.11n HT40

MCS7

-71dBm

MCS0

-90dBm

802.11ax HT20

MCS11

-63dBm

MCS0

-93dBm

802.11ax HT40

MCS11

-60dBm

MCS0

-91dBm

5.8G Receive Sensitivity

802.11a

54M

-77dBm

6M

-95dBm

802.11n HT20

MCS7

-75dBm

MCS0

-93dBm

802.11n HT40

MCS7

-72dBm

MCS0

-91dBm

802.11ac HT20

MCS7

-74dBm

MCS0

-93dBm

802.11ac HT40

MCS7

-72dBm

MCS0

-91dBm

802.11ac HT80

MCS9

-62dBm

MCS0

-88dBm

802.11ax HT20

MCS11

-63dBm

MCS0

-93dBm

802.11ax HT40

MCS11

-60dBm

MCS0

-90dBm

802.11ax HT80

MCS11

-56dBm

MCS0

-87dBm

2.4G EVM

802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28dB ;

802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB

5G EVM

802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB;

802.11ax: ≤-35 dB

PPM

±20ppm

DC

12V----1.5A

PoE

48V (IEEE 802.3at)

LED light

Sys, WAN, LAN

Power Consumption

≤ 14W

Size

186*186*35.8mm

Working Mode

Gateway, AP

Wireless Functions

Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4.

Support SSID hidden

Support seamless roaming, 802.11kvr standard.

Support 5G Prior for a faster Ethernet.

Wireless Security: Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x

Support MAC filter

Support Wi-Fi time on/off to save energy

Support client isolation to improve the wireless stability

Support RF power adjustable, adjust the RF power based on environment.

Support user quantity limited, Max 64 users to access each band.

Networking Function

VLAN settings

Cloud access support in gateway mode

Device Management

Back-up the configuration

Restore the configuration

Reset to factory default

Reboot the device: including time reboot or reboot immediately

Admin management password modify

Firmware upgrade

System log

Support firmware GUI web management, AC controller management, remote management and cloud management

Protocols

IPv4
