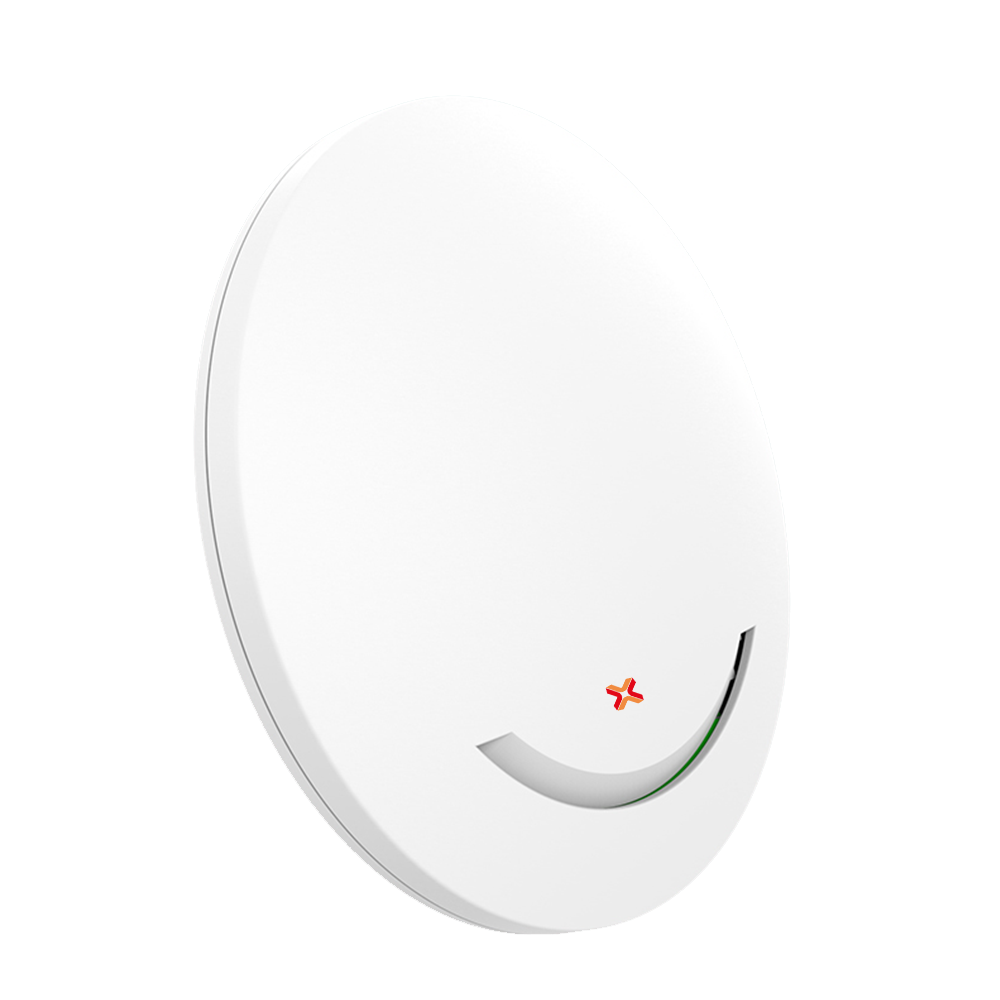

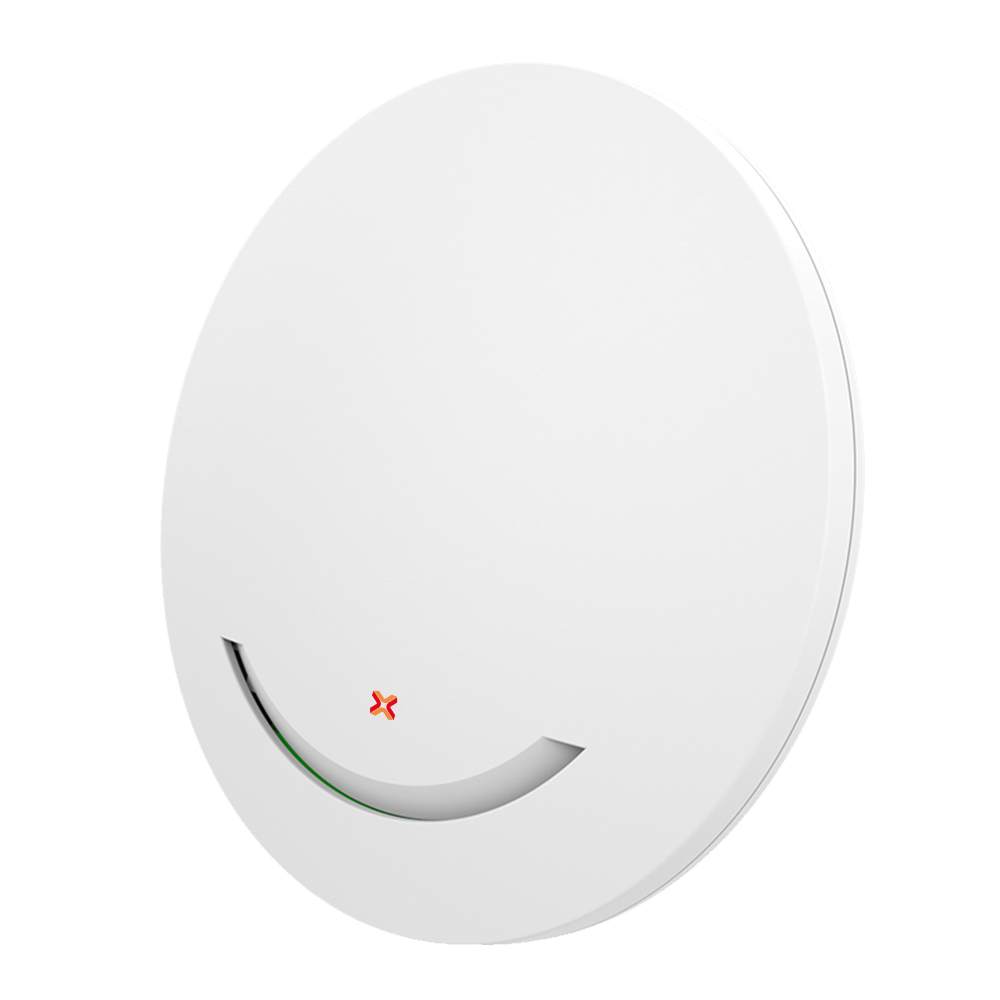

C240 is an 11ac Wi-Fi standard high power Ceiling Wireless Access Point with MTK chipset, combined 1200Mbps Wi-Fi speed over 2.4GHz (300Mbps) and 5GHz (900Mbps), make more than 80 end users can access into it. It is an economic option for hotel, school, restaurant or other enterprise place.

Main Features

• Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate, 11ac 2x2 MIMO Technology

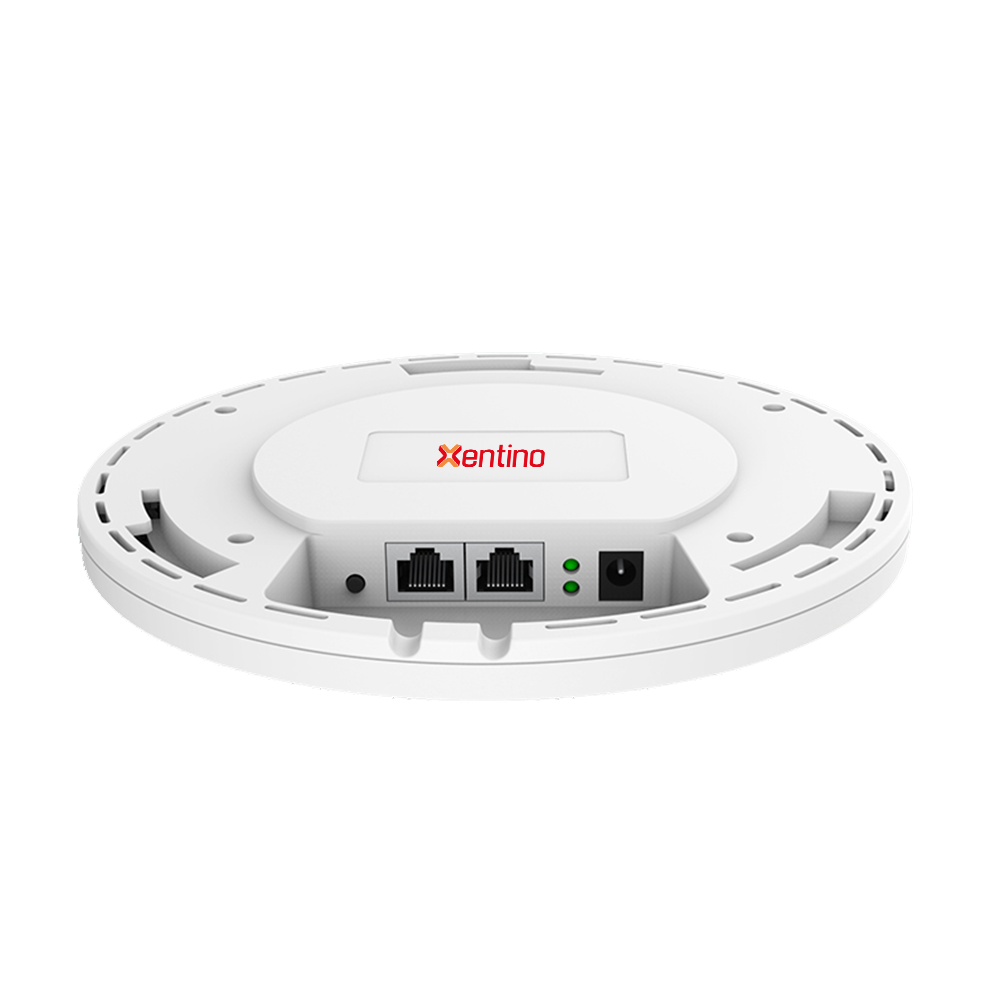

• 2*10/100Mbps Ethernet Ports to meet with different customer’s request.
• Support active IEEE 802.3af 48V PoE standard
• Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
• Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode in FAT AP
• With function of build in firewall, IP filter, URL filter and MAC filter
• Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment

FIT/FAT Operation Mode

C240 support FIT/FAT operation mode;

If FIT AP, work with AC controller, plug and play, central management by AC controller, mostly for enterprise application. If FAT AP, support AP, repeater, gateway, WISP operation mode, can be configured by GUI, suit for home mostly.

Multiple Protection for Stable Performance

C240 with ABS fireproof material, white color, suite for various decoration styles.

Besides that, PCB board with watchdog design, can reboot automatically in case of failure.

What’s more, it support lightning protection and ESD protection, can install in various harsh environment.

Power over Ethernet

C240 has integrated IEEE802.3af Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Zero Configure & Cloud Management System

Support FIT/FAT AP together, work with Xentino WLAN Controller, zero configure in IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.... Besides that, it support advertisement and authentication functions like WeChat/Google/SMS/Facebook/Member Authentication.
