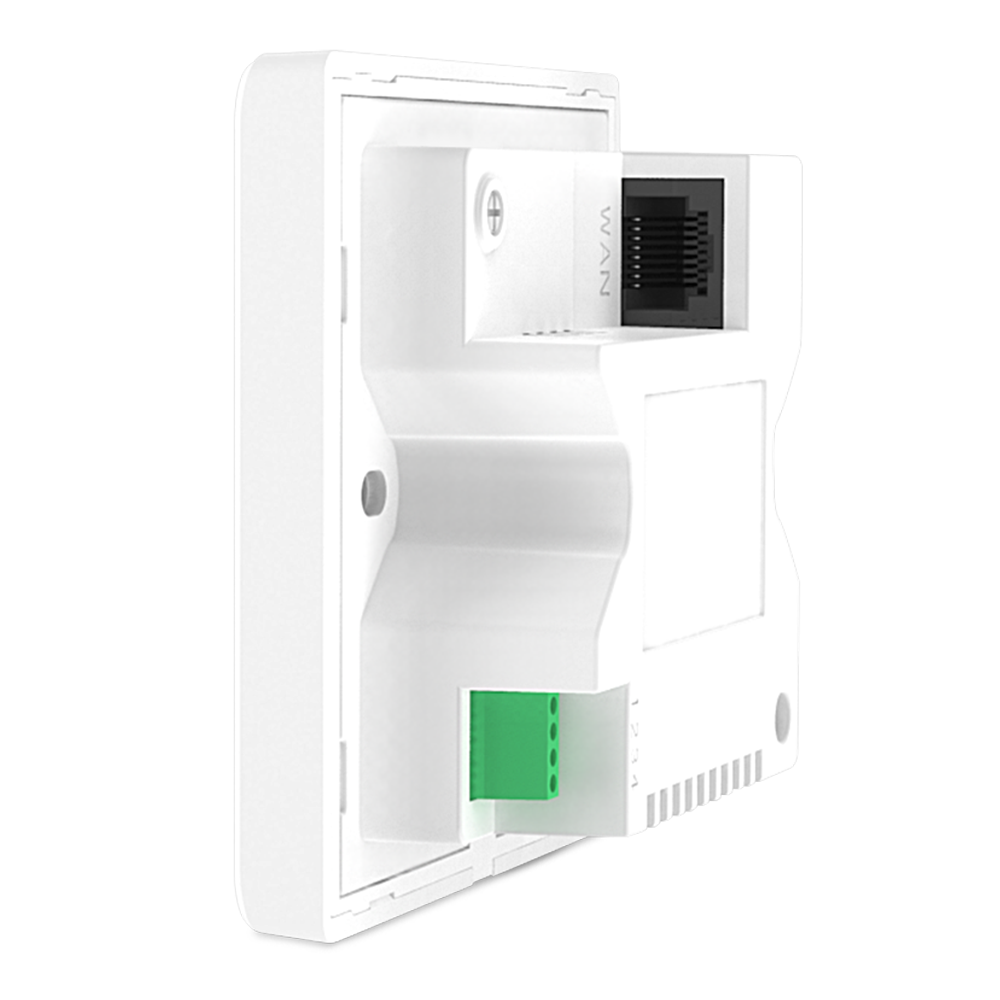

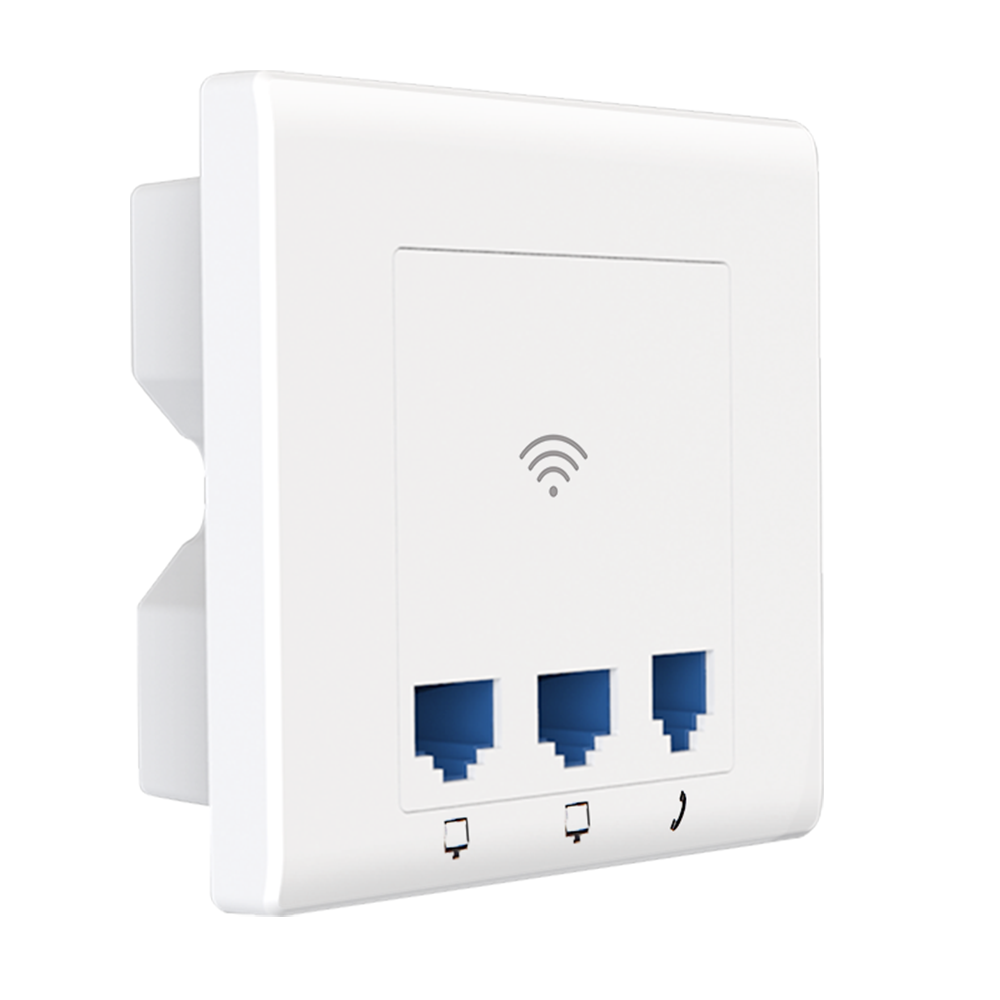

It is an in wall AP with 300Mbps data rate with Qualcomm Chipset, with 3*RJ45 ports and 1*RJ11 port, designed for hotel/home mainly to provide Wi-Fi Internet access for users and LAN internet for TV/PC in hotel room, guest room, living room and lobby.
It is an in wall AP with 300Mbps data rate with Qualcomm Chipset, with 3*RJ45 ports and 1*RJ11 port, designed for hotel/home mainly to provide Wi-Fi Internet access for users and LAN internet for TV/PC in hotel room, guest room, living room and lobby.
Main Features
SPECIFICATIONS
Wireless |
|
Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Data Rate |
11n: 300Mbps 11g: 54Mbps 11b: 11Mbps |
Frequency Range |
2.4-2.4835GHz |
Wireless Transmit Power |
11n @MCS7:14±2DB, @MCS0:16±2DB. 11g @54M:15±2DB, @6M:17±2DB. 11b @11M:18±2DB, @1M:20±2DB. |
Modulation Type |
OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
Receive Sensitivity |
11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM |
±20ppm |
MAX Users |
64 |
Operation Mode |
Gateway, AP, Repeater |
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
System Requirements |
Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS |
Hardware |
|
Chipset |
Qualcomm QCA9531 |
Flash |
16M |
SDRAM |
64M |
Interfaces |
3 x 10/100Mbps LAN/WAN Port, 1 x RJ11 port |
Button |
Reset Button |
Antenna |
MIMO 2dBi Build-in omni-directional Antenna |
Power Supply |
802.3af PoE |
Dimensions ( W x D x H ) |
86mm*86mm*35mm |
Others |
|
Operating Temperature |
-20°C~55°C |
Storage Temperature |
-40°C~70°C |
Relative Humidity |
10% ~ 90%, Non-condensing |
Storage Humidity |
5%~95%, Non-condensing |
Certifications |
RoHS |
Package Contents |
1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory |
