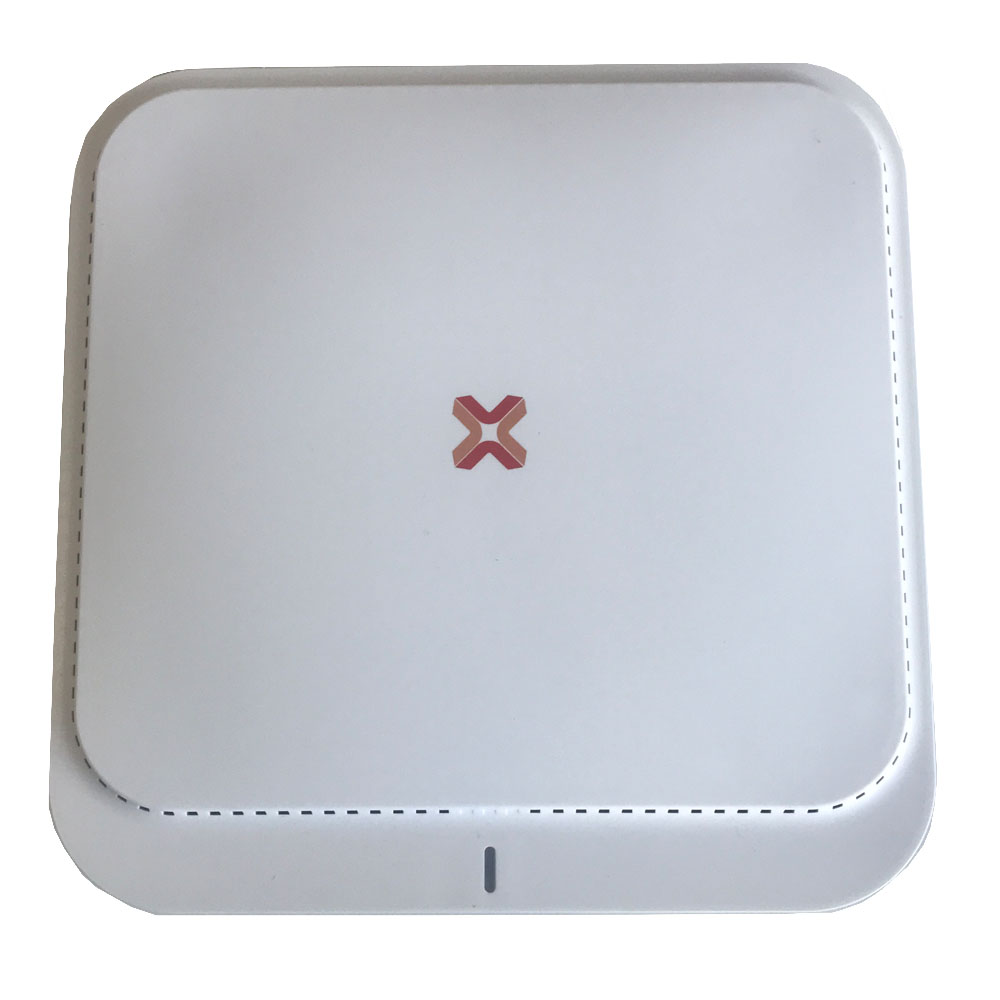

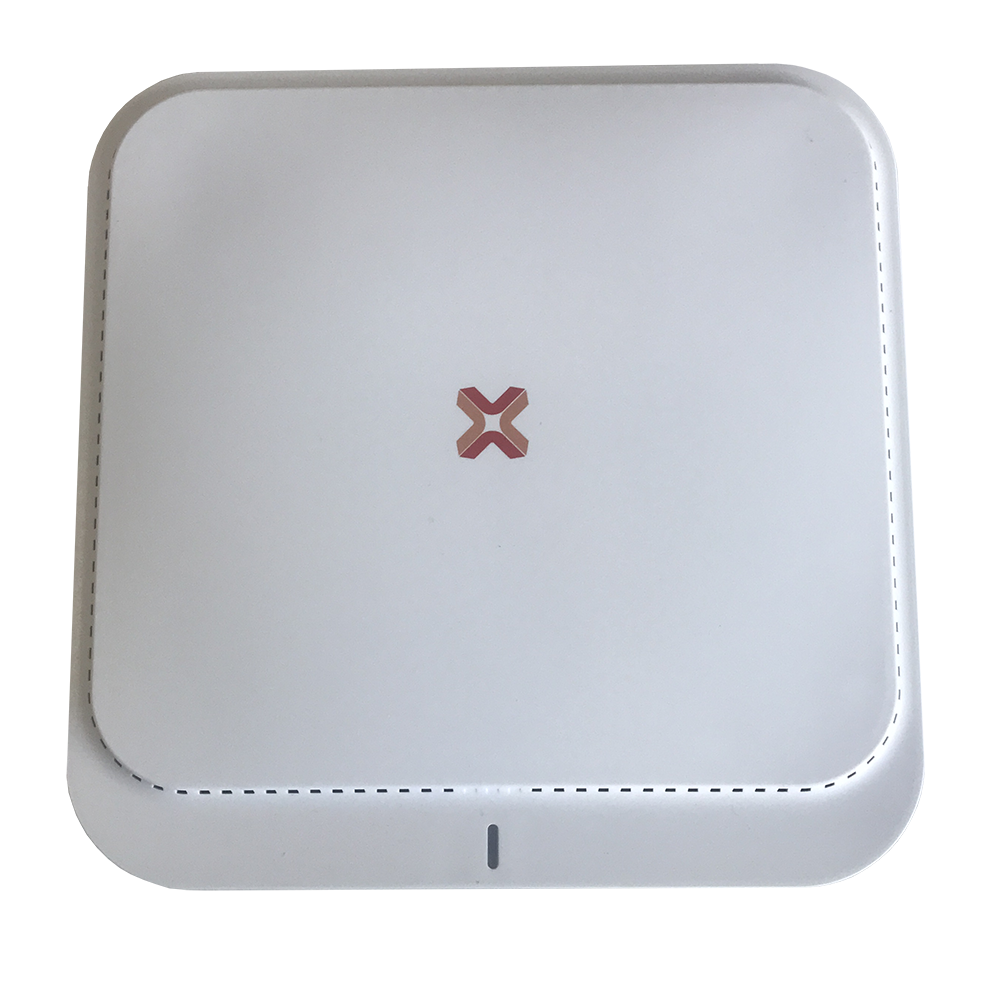

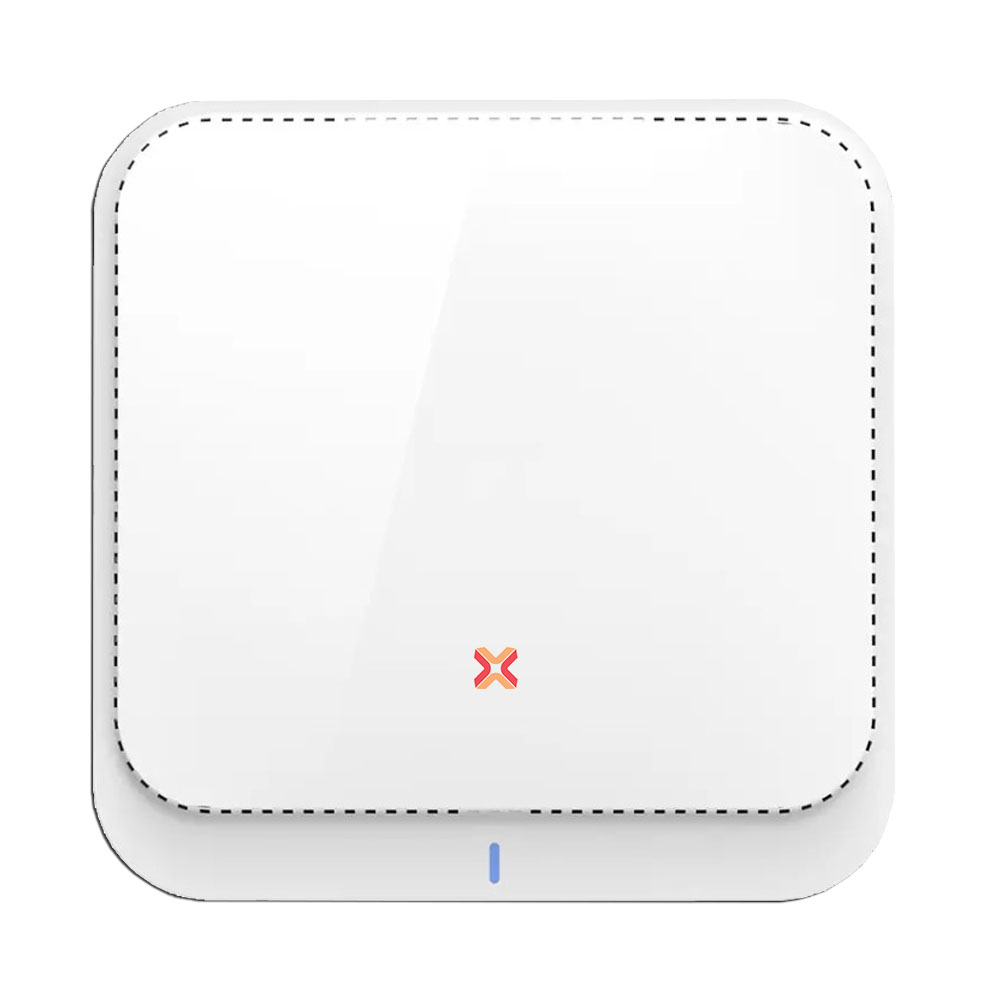

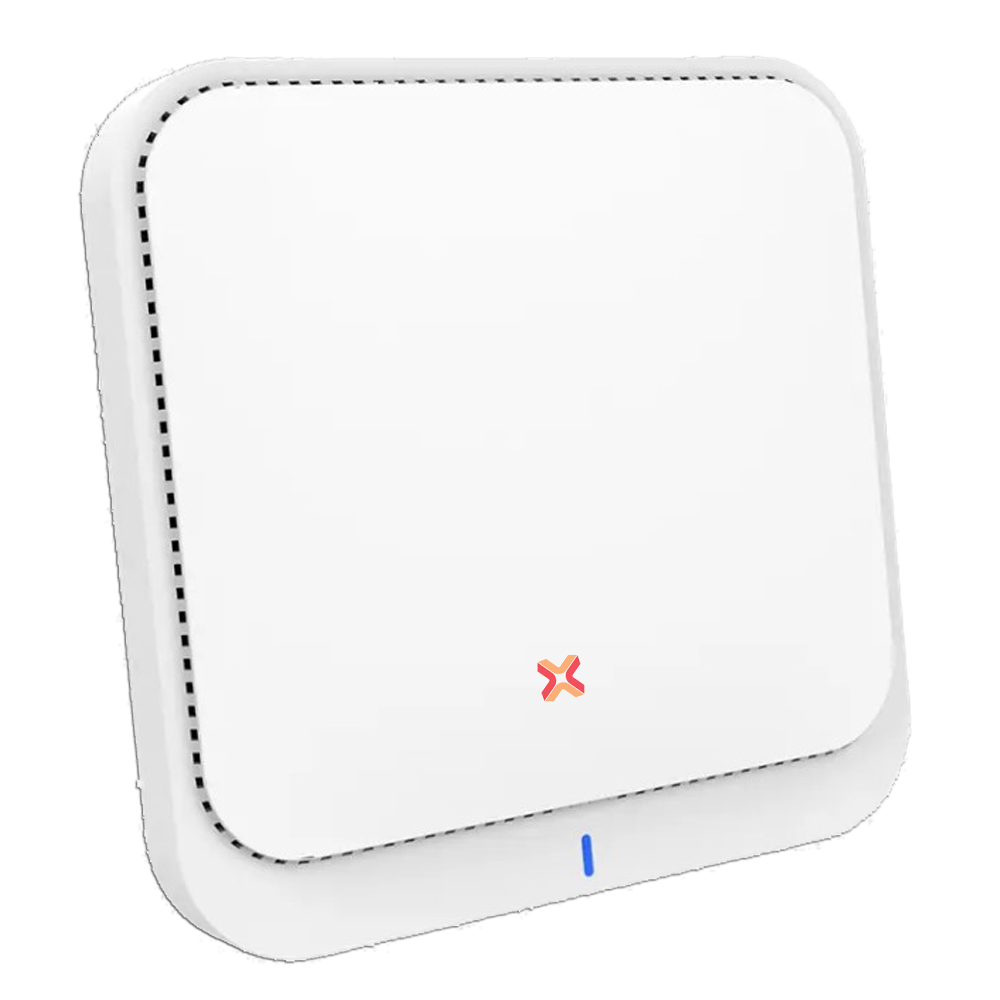

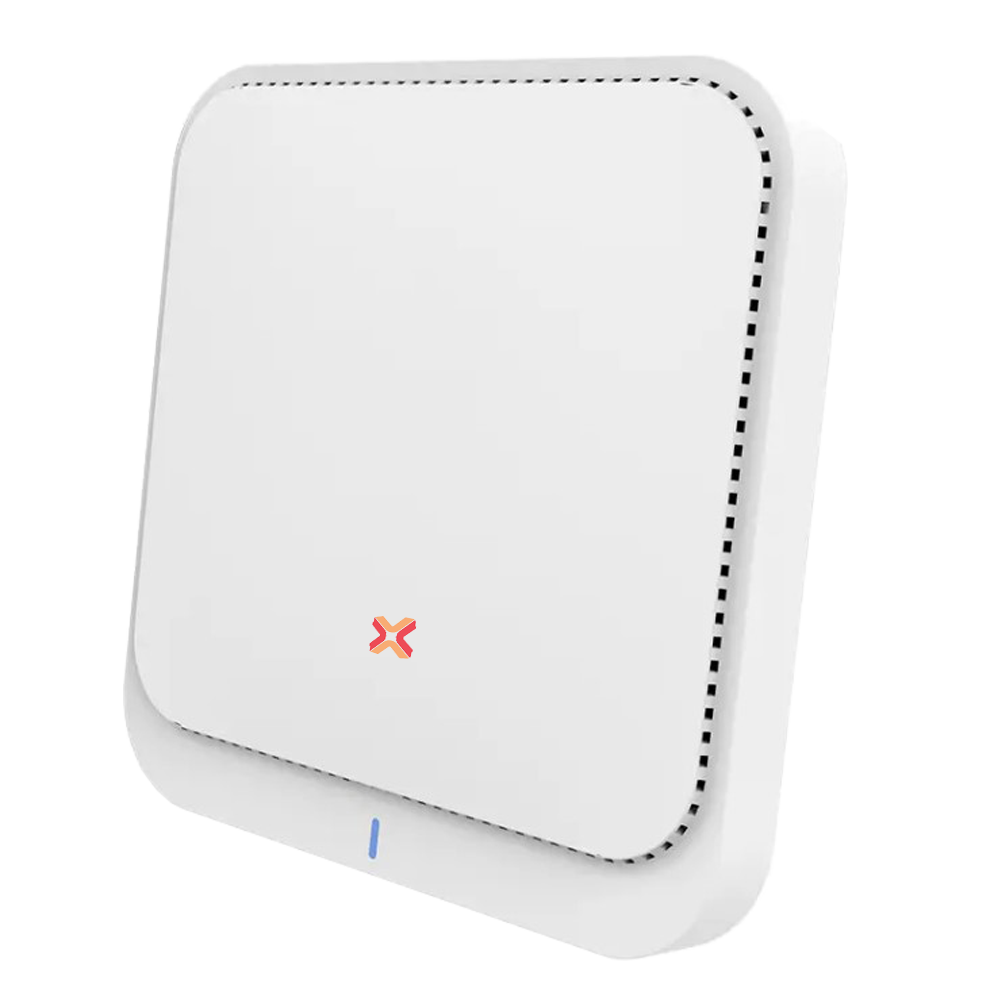

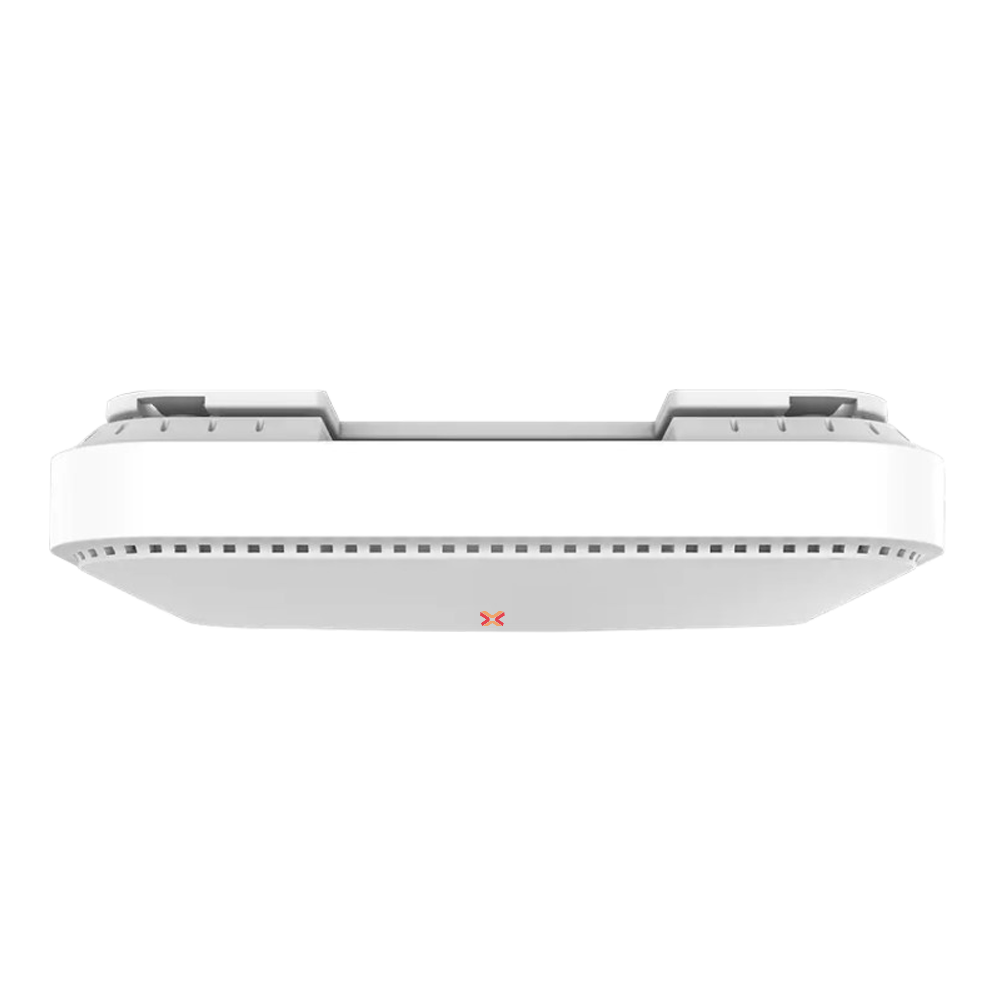

Xentino C880 11ax 3657Mbps Dual Band Wave2 Ceiling WiFi6 AP.
C880 is an 11ax 4x4 Mu-MiMo Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming. It equipped 2.5Gigabit WAN & LAN ports. (Adaptör ve POE injector YOKTUR)
C880 is an 11ax 4x4 Mu-MiMo Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming. It equipped 2.5Gigabit WAN & LAN ports.
Main Features
- It comply with 802.11ax, 4*4 MIMO technology, dual band, up to 3657Mbps data rate; equipped with 2.5G WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.
- It with QSDK driver, support seamless roaming, 5G prior, OFDMA and DL/UL-OFDMA (37 users in 5.8G, 18 users in 2.4G); What’s more, this device can work with OpenWRT firmware also, our technical firmware team can provide efficient technical support for fast firmware development.
SPECIFICATIONS
|
Hardware |
|
|
Chipset |
IPQ8072A +QCN5054+QCN5024+QCA8081*2 |
|
Standard |
802.11ax/ac/b/g/n |
|
DDR |
256MB(16bit)*2=1GB, maxi up to 2GB |
|
Flash |
NOR-8MB AND NAND-256MB |
|
2.4G Frequency |
2.4GHz - 2.484GHz |
|
2.4G Wi-Fi standard |
802.11b/g/n/ax |
|
5.8G Frequency |
5150~5850MHz |
|
5.8G Wi-Fi Standard |
802.11 a/n/ac/ax |
|
Interface |
1 * 10/100/1000/2500Mbps RJ45 WAN Port |
|
1 * 10/100/ 1000/2500Mbps RJ45 LAN Port |
|
|
1 * Reset |
|
|
1* Bluetooth(optional) |
|
|
1 * DC Port |
|
|
Antenna |
IPEX Connector, 4*3dBi omni antennas |
|
Data Rate |
3657Mbps （2.4G: 1182Mbps (11ax 4x4); 5.8G: 2475Mbps (11ax 4x4)） |
|
End Users |
150+ |
|
RF Power |
2.4g ≤ 22dBm 5.8g ≤ 22dBm |
|
DC |
12V----3A |
|
PoE |
48V (IEEE 802.3at+) |
|
LED light |
Sys; 5.8G wifi; 2.4G wifi; WAN; LAN |
|
Max Power Consumption |
≤ 35W |
|
Size |
198mm * 198mm * 41.02mm |
|
Weight |
TBD |
|
Working Temperature |
-20°C to 45°C |
|
Storage Temperature |
0°C to 70°C |
|
Humidity |
5％～95％ (non-condensing) |
